Adjusting Cylinder Drive Gap

Run cylinder sheaves to close the intermediate sheaves.

CAUTION: Shut off engine and remove key.

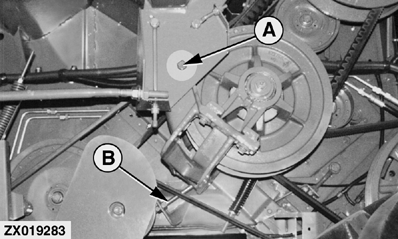

Loosen bolt (A).

Adjust bolt (B) to get a 6 mm (0.23 in.) gap.

IMPORTANT: If sheave gap is more than 8 mm (0.31 in.) it limits sheave travel. Any of these failures can occur when drive is operated at the high end of either low or high range:

Belt failure

Belt stretch

Bearing failure

Shaft failure

If sheave gap is less than 4 mm (0.16 in.), it limits torque sensing. Any of these failures can occur when drive is operated at the low end of either low or high range:

Belt failure

Belt slipping (burning)

Tighten bolt (B).
