Aligning Cylinder Drive

CAUTION: Shut off engine and remove key.

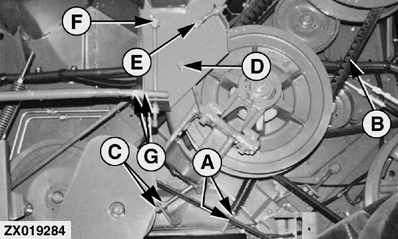

Loosen nuts (A) to remove tension from drive belt (B).

Loosen countershaft assembly with nuts (C).

Loosen cap screw (D).

Loosen cap screws (E) and (F).

Loosen nuts (G).

A-Nuts
B-Drive belt
C-Nuts
D-Cap screw
E-Cap screw
F-Cap screw
G-Nuts

AG,OUZXMAY,475 -19-09DEC99-1/3

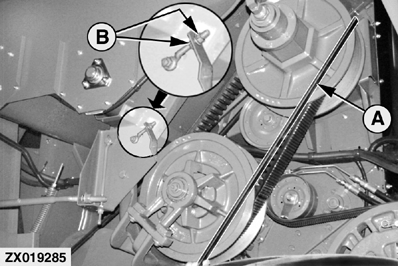

Using a straight edge (A), check the alignment of the countershaft sheaves to the sheaves on the primary countershaft.

The countershaft sheaves should be within ± 2 mm (0.08 in.) of the primary countershaft. Make adjustments with nuts (B).

After making adjustments, tighten nuts (B).

AG,OUZXMAY,475 -19-09DEC99-2/3

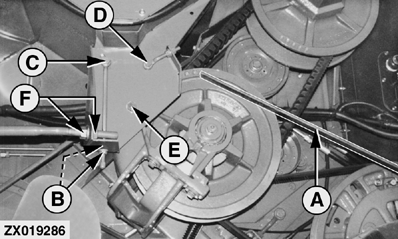

Using a straight edge (A), check the alignment of the countershaft sheaves to the sheaves on the cylinder shaft.

The countershaft sheaves should be within ± 2 mm (0.08 in.) of the cylinder shaft. Make adjustments with nuts (B).

After making adjustments, tighten nuts (B).

Tighten cap screws (C), (D) and (E).

Tighten nuts (F).

Readjust cylinder drive gap. See "Adjusting Cylinder Drive Gap" in this Section.

A-Straight edge
B-Nuts
C-Cap screw
D-Cap screw
E-Cap screw
F-Nuts

AG,OUZXMAY,475 -19-09DEC99-3/3
