CAUTION: Shut off engine and remove key.

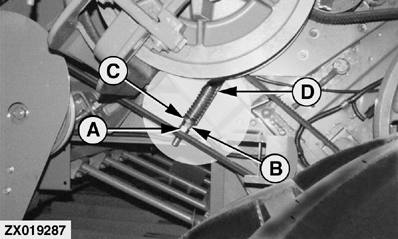

Loosen lock nut (A).
Tighten nut (B) until washer (C) aligns with the end of gauge (D).
Tighten lock nut.
A-Lock nut B-Nut C-Washer D-Gauge
AG,OUZXMAY,476 -19-09DEC99-1/1
CAUTION:
Shut off engine and remove key.
