Replacing Cylinder Intermediate Belt

Run cylinder drive to slowest speed.

CAUTION: Shut off engine and remove key.

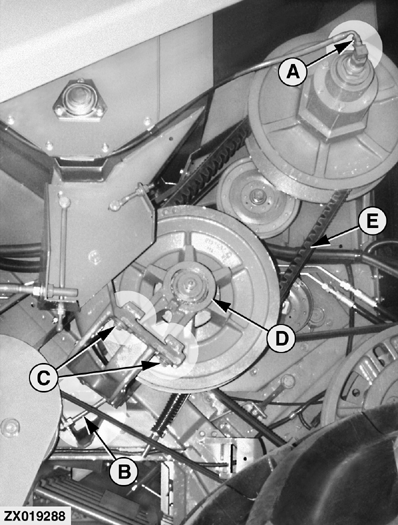

Disconnect hose (A) with two wrenches. Loosen belt at bolt (B).

Remove two bolts (C), swing mounting (D) aside and remove belt (E).

Install new belt and check alignment, see "Aligning Cylinder Drive" in this Section.

A-Hose
B-Bolt
C-Bolts
D-Mounting
E-Belt
