Replacing Cylinder Belt

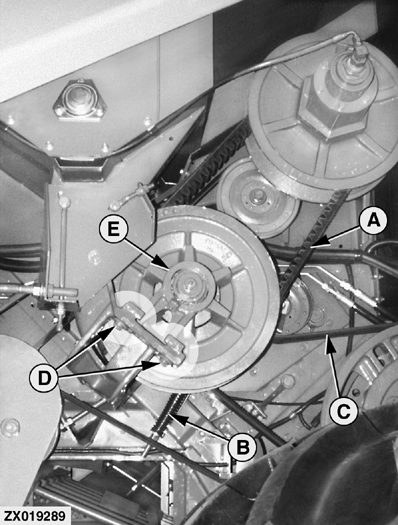

Run cylinder drive to slowest speed.

CAUTION: Shut off engine and remove key.

Loosen cylinder intermediate belt (A).

Loosen idler (B).

Roll cylinder belt (C) under belt (A).

Remove two bolts (D) and swing mounting (E) aside. Remove belt.

Install new belt and check alignment, see "Aligning Cylinder Drive" in this Section.

A-Intermediate belt
B-Idler
C-Cylinder belt
D-Bolts
E-Mounting
