Adjusting Tailings Elevator Paddle Chain

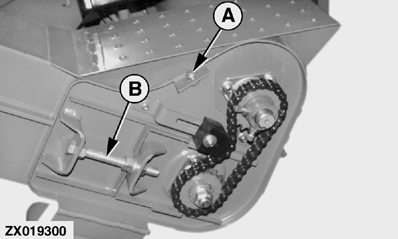

Loosen cap screw (A) and lower shield.

Adjust bolt (B) (both sides of elevator) to tighten chain.

Elevator chain is adjusted properly when lower end of chain can be slid across the sprocket or can be pulled 6 mm (0.23 in.) away from the sprocket.
