Adjusting Cleaning Shoe Auger Gears

CAUTION: Raise feeder house and lower safety stop.

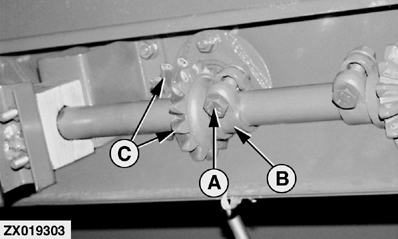

Shut off engine and remove key.

Loosen nut (A) on clamp (B).

Adjust gears (C) until they touch.

Back clamp (B) off 0.8 mm (0.03 in.) and tighten nut. Do not run gears too tight.
