Replacing Cleaning Fan Belt

Start engine, engage separator and operate fan at its highest speed.

causym CAUTION: Engine must be off and key removed.

Disengage separator and shut off engine.

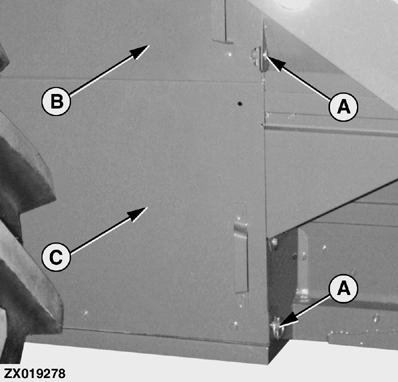

Remove quick lock pins (A) from shields.

Slide top shield (B) forward and lower shield (C) rearward.

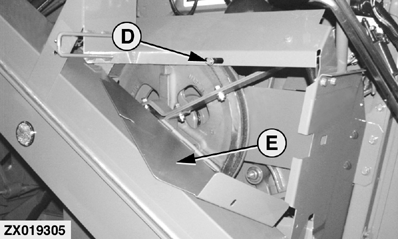

Remove bolt (D) and lower shield (E).


A-Lock pins
B-Top shield
C-Lower shield
D-Bolt
E-Lower shield

ZX019278

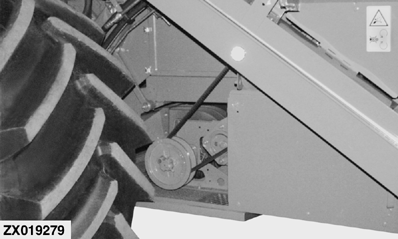

ZX019279
ZX019305

AG,OUZXMAY,491 -19-09DEC99-1/2

Remove Belt

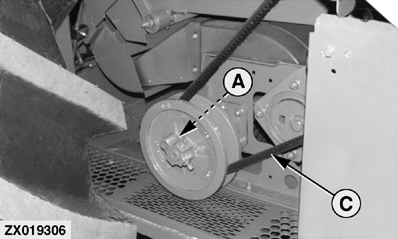

Wedge bottom sheave (A) open.

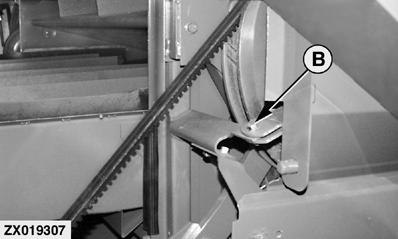

Disconnect front arms (B) and swing them out of the way.

Remove upper sheave and pull belt (C) over lower sheave.

Install new belt.

Reinstall shields.

ZX019306
ZX019307

AG,OUZXMAY,491 -19-09DEC99-2/2
