Replacing Unloading Auger Drive Belt

CAUTION: Shut off engine and remove key.

Be certain drive is disengaged.

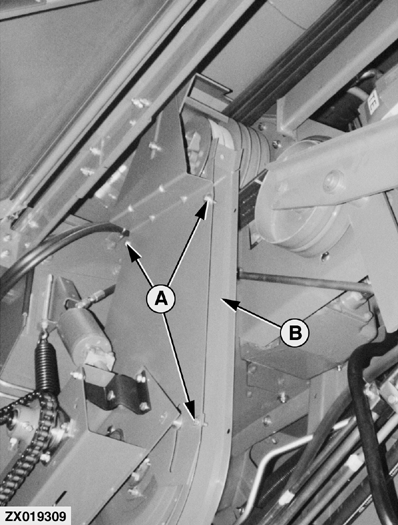

Remove four bolts (A) and trap (B).

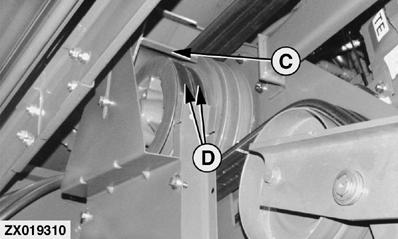

Loosen belt trap (C). Remove both belts (D).

IMPORTANT: Always replace both belts as a matched set to ensure equal wear.

Adjust belt trap (C).

Install belt trap (B).

If the unloading auger drive will not shut off (disengage) as the new belts stretch, see "Adjusting Unloading Auger Drive Cylinder" in Section Grain Tank Loading and Unloading.

A-Bolts
B-Trap
C-Belt trap
D-Belts
