Replacing Header/Reel Pump Belt

IMPORTANT: It is not necessary to disconnect any hydraulic hoses to replace this belt.

Remove shields.

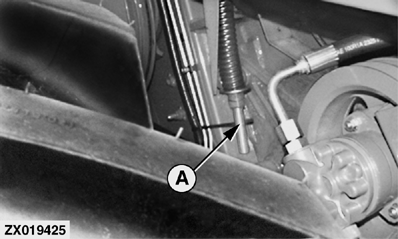

Loosen idler (A).

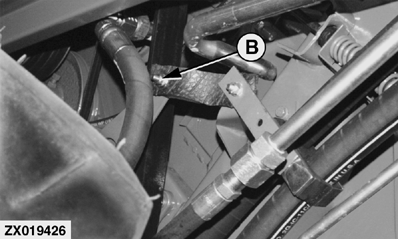

Remove bolt (B).

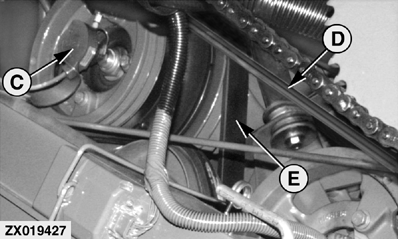

Disconnect electric clutch (C).

Loosen idler and remove beater drive belt (D).

Remove belt (E).

Install new belt in reverse order and check feeder house sheave gap (see "Adjusting Variable Speed Feeder House Belt" in this Section).

A-Idler
B-Bolt
C-Electric clutch
D-Beater drive belt
E-Header/reel pump drive belt

AG,OUZXMAY,496 -19-09DEC99-1/1
