Replacing Clean Grain Elevator Belt

CAUTION: Engine must be off and key removed.

Remove shields.

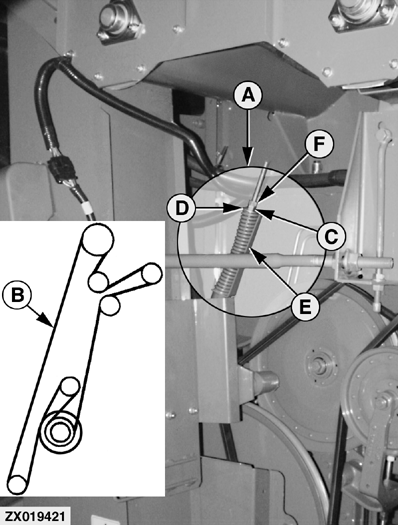

Loosen idler (A) for clean grain elevator.

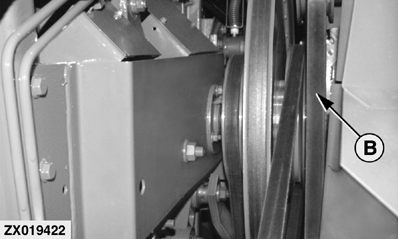

Remove belt (B).

Install new belt.

Tighten nut (C) until washer (D) aligns with the end of gauge (E).

Tighten locking nut (F).

Reinstall shields.

A-Idler
B-Clean Grain Elevator Belt
C-Nut
D-Washer
E-Gauge
F-Nut

AG,OUZXMAY,498 -19-09DEC99-1/1
