AG,OUZXMAY,499 -19-10DEC99-1/2

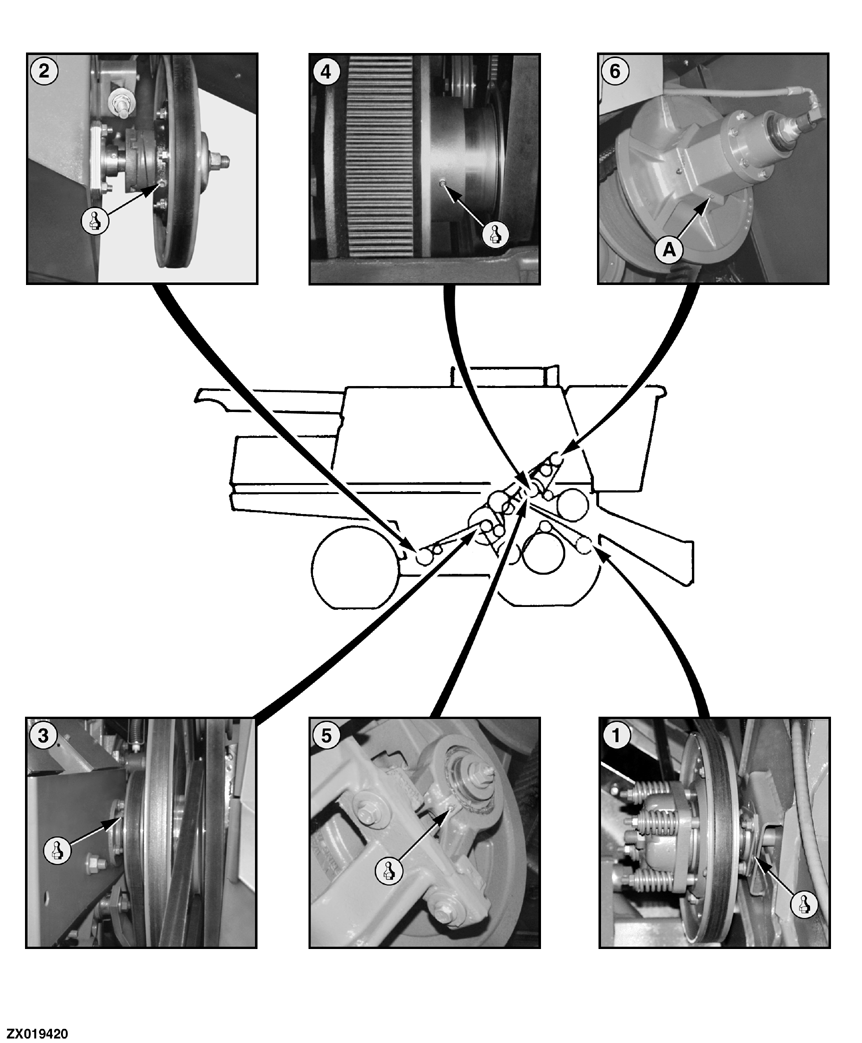

1. Conveyor Auger Drive Slip Clutch-Do not overgrease.

2. Tailings Auger Slip Clutch.

3. Secondary Countershaft.

4. Cylinder Drive Bearing.

5. Cylinder Drive.

6. Cylinder Variable Drive Upper Sheave

IMPORTANT: Grease with sheaves closed. Remove pipe plug (A) and install fitting at (A). Pump 50 shots of grease into fitting. Do not over grease. Remove fitting and re-install pipe plug.

Cycle cylinder speed to distribute grease if drive is operated at high speed all the time.

AG,OUZXMAY,499 -19-10DEC99-2/2
