AG,OUZXMAY,503 -19-10DEC99-1/2

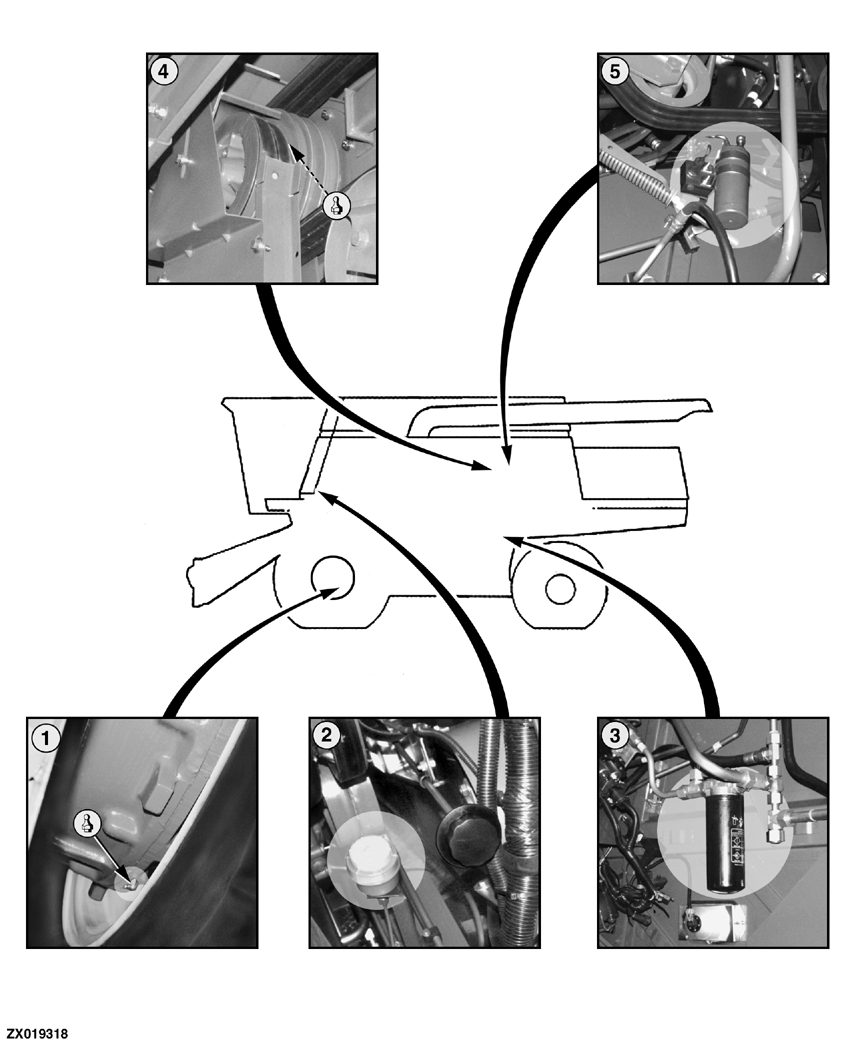

1. Final Drive Outer Bearings (Both Sides)-When operating in mud and water, grease at 10 hours.

2. Look through cap. Add brake fluid to 6 mm (0.23 in.) from top. Do not let dirt get into brake fluid.

3. Main Hydraulic/Hydrostatic Filter. It is not necessary to drain the reservoir to change this filter. Coat seal

4. Separator Drive Sheave

5. Hydrostatic Charge Filter-Coat seal on new filter with oil. Hand tighten then tighten 1/2 turn more.

AG,OUZXMAY,503 -19-10DEC99-2/2
