AG,OUZXMAY,509 -19-10DEC99-1/2

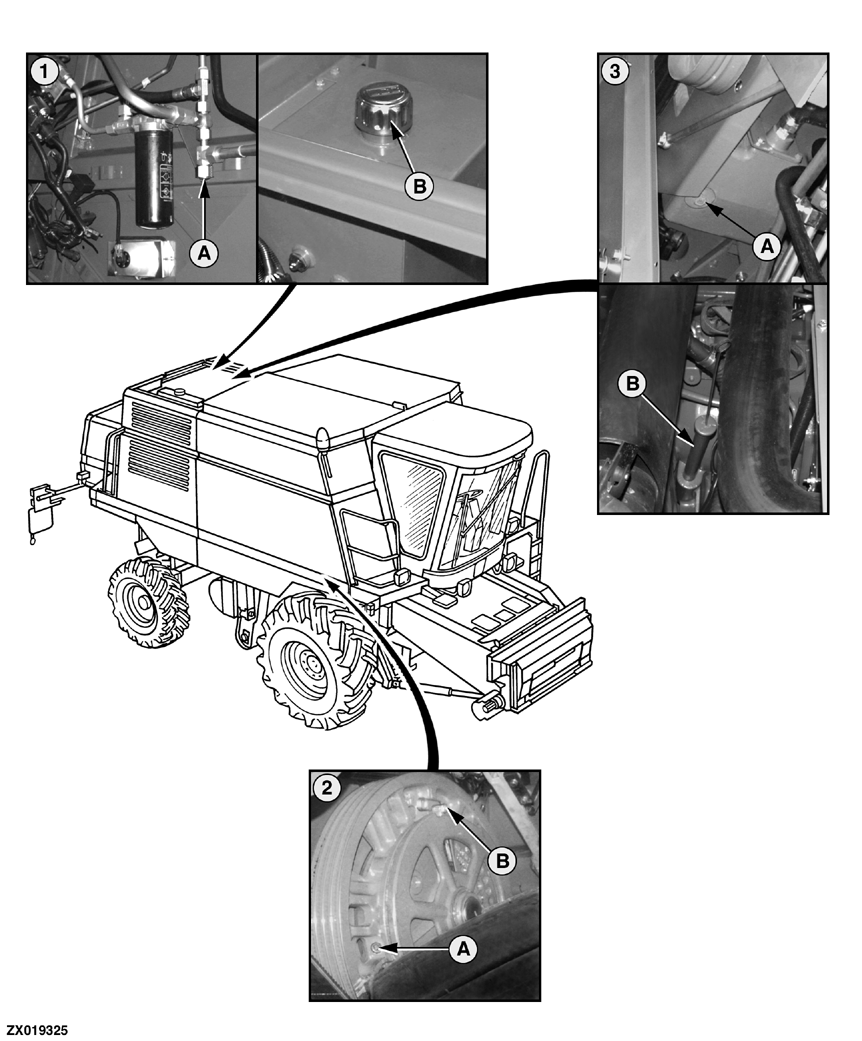

1. Hydraulic/Hydrostatic Reservoir-Drain at (A). Clean screen and cap (B) and refill. Oil must show above lower sight glass and below top sight glass.

2. Dual Range Gearcase-Drain at (A). Check new oil level with arrow (B) up. Do not get oil on belts.

3. Engine Gearcase-Drain at plug (A). Clean breather on dipstick. Refill at tube (B).

AG,OUZXMAY,509 -19-10DEC99-2/2
