400 Hours or Yearly (Continued)

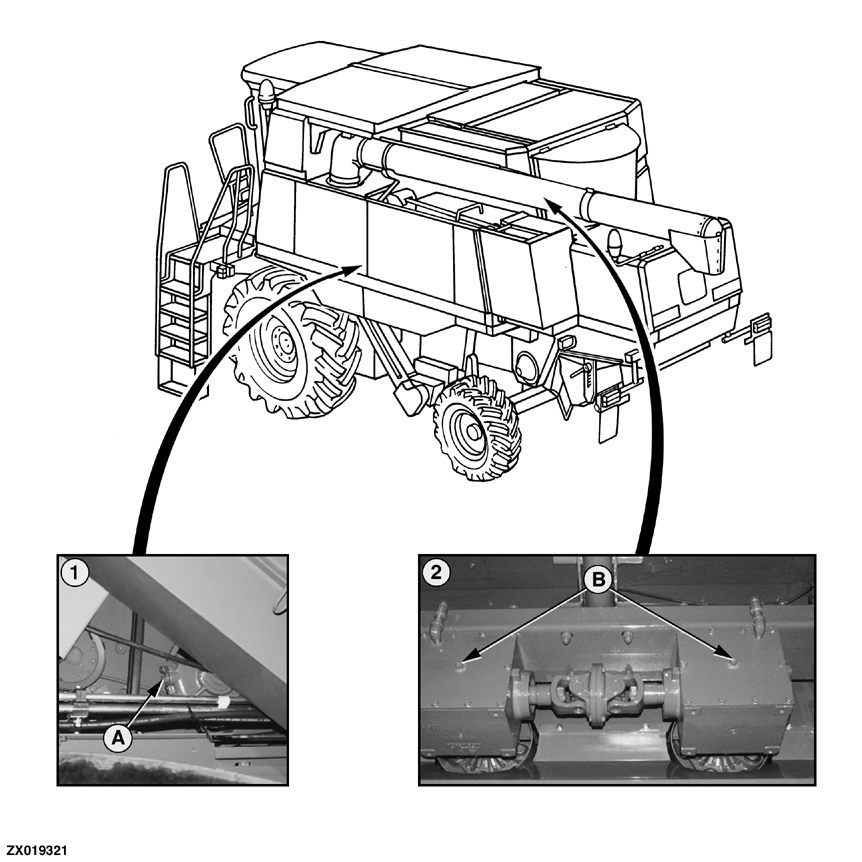

ZX019321

1. Beater Gearbox-Oil level should be even with check hole (A).

2. Separator Gearboxes-Oil level should be even with check holes (B).

AG,OUZXMAY,510 -19-10DEC99-1/1
