Grain Tank Cover Switch (Black)

causym CAUTION: Grain tank covers must be closed before transporting combine on roads.

IMPORTANT: Open grain tank covers before engaging separator. Actuator will not raise covers if tank is one third or more full. If grain tank is full, unload before raising covers.

  • To open the grain tank covers push and hold the open-symbol (I).
  • To close the grain tank covers push and hold the close-symbol (II).

Grain tank covers open up to 45°. When covers are opened, the clean grain loading auger swings up with them. Auger swings down when covers are closed.

NOTE: For more details on operating the grain tank covers, see Section "Grain Tank Loading and Unloading".

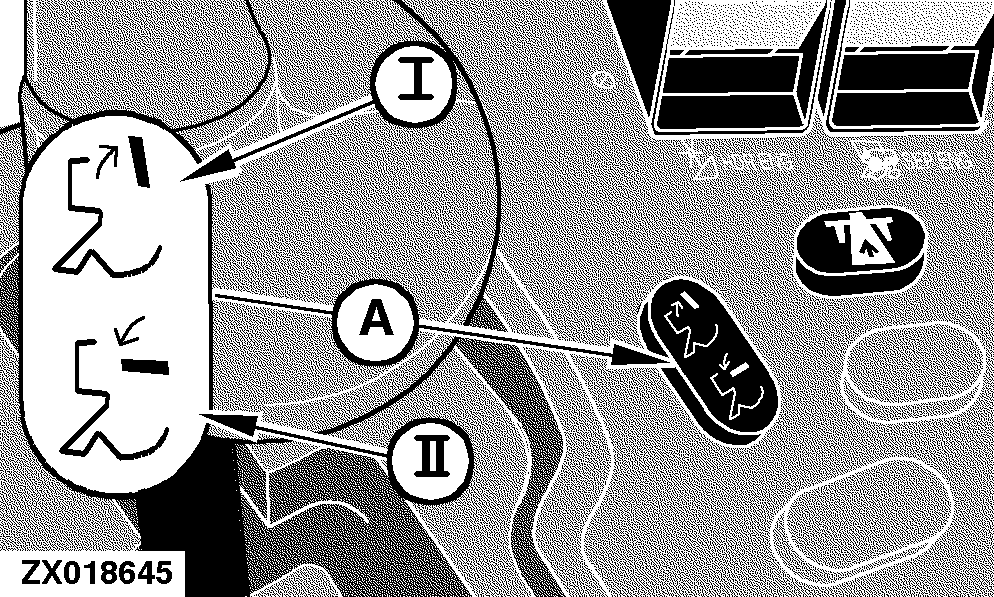

ZX018645


A-Grain Tank Cover Switch
I-Open-Symbol
II-Close-Symbol
