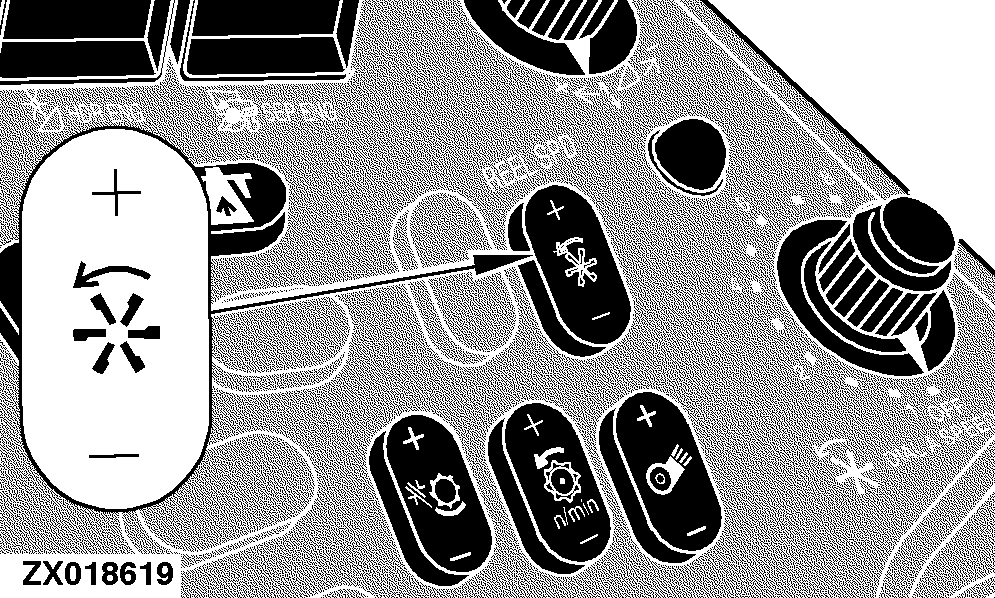

Manual Reel Speed Switch (Black)

NOTE: Turn reel speed control off for manual control. If equipped with reel speed control, the automatic function can be overridden by the manual control, but will resume operation when the switch is released.

In order to change the reel speed the header and separator must be engaged.

Push and hold plus (+) symbol to increase speed or push and hold minus (-) symbol to decrease speed.

AG,OUZXMAY,94 -19-13OCT99-1/1
