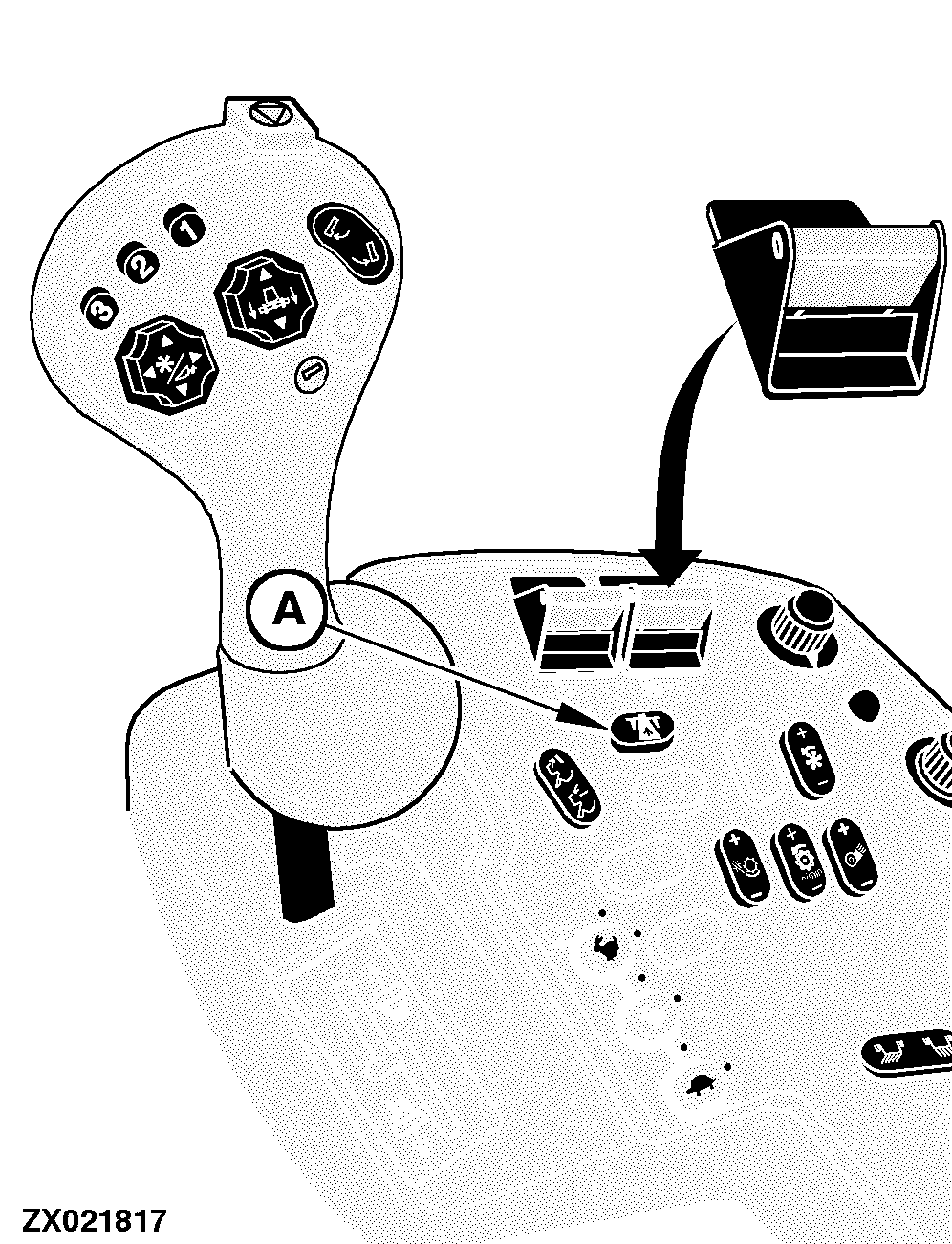

Separator Engage Switch (Yellow)The separator engage switch turns the separator drive on/off. Push down and forward to lock switch in the "on" position. Pull to turn off. Switch must be in OFF position to start engine. To engage separator, road safety switch (A) must be in the field position. The cylinder speed adjust and the cleaning fan speed adjust systems only work when the separator is running. NOTE: Engage separator prior to the header.
|
|
