Manual Leveling Control Switch (Hillmaster)

Combine tilt adjustment is only possible with engine running and road safety switch (A) in field position.

NOTE: With automatic leveling control system activated, this switch can be used to overcome automatic functions, i.e. combine may be tilted manually to the left or right.


A-Road Safety Switch in Field Position

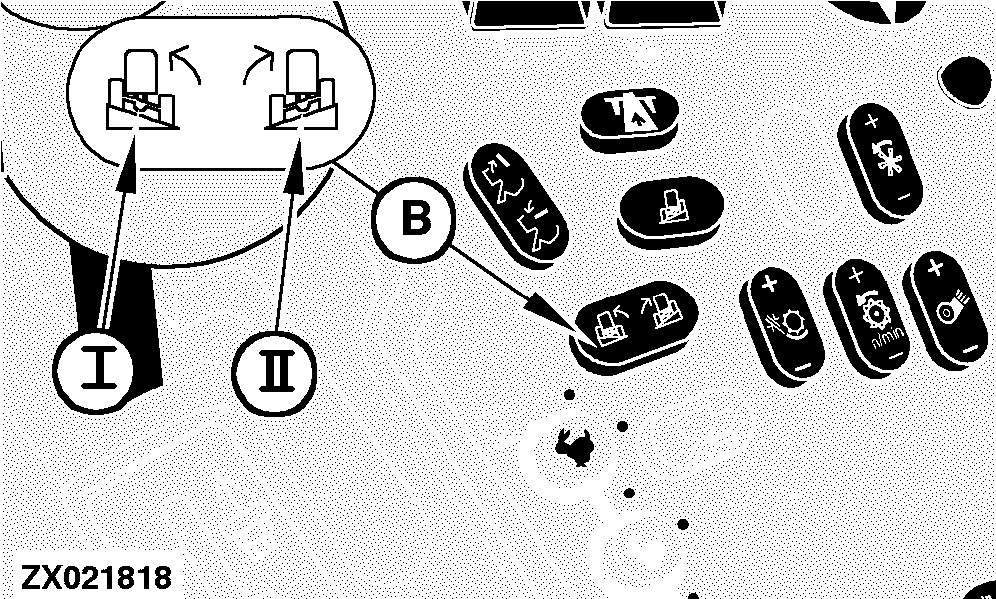

B-Manual Leveling Control Switch
I-Combine Tilt to the Left
II-Combine Tilt to the Right

ZX018617
ZX021818

OUZXMAG,0000760 -19-04SEP00-1/1
