Automatic Leveling Control Switch (Hillmaster)

The automatic leveling system will operate only with engine running and road safety switch (A) in field position.

Pressing the switch (B) will activate the automatic leveling system. The indicator light (C) will come on indicating the switch is in automatic control position.

CAUTION: Before driving combine on public roads, move switch to position (II) to make sure that a transport height of 4 m (13 ft 2 in.) is not exceeded.

A-Road Safety Switch in Field Position

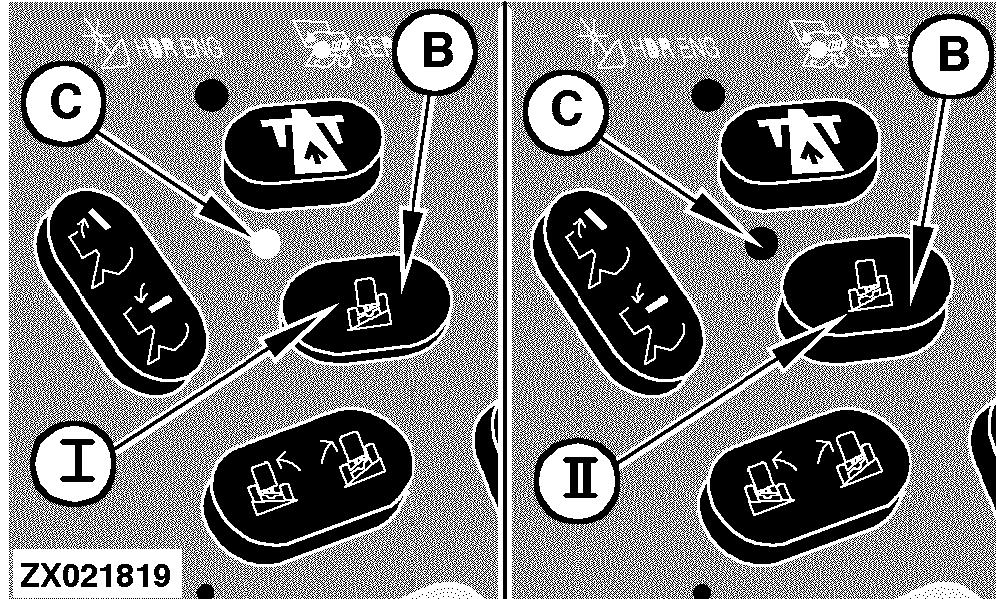

B-Automatic Leveling Control Switch
C-Indicator Light
I-Automatic Leveling Control ON (field travel)
II-Automatic Leveling Control OFF (Road travel/Manual)

OUZXMAG,0000761 -19-04SEP00-1/1
