Road Safety Switch (Black)

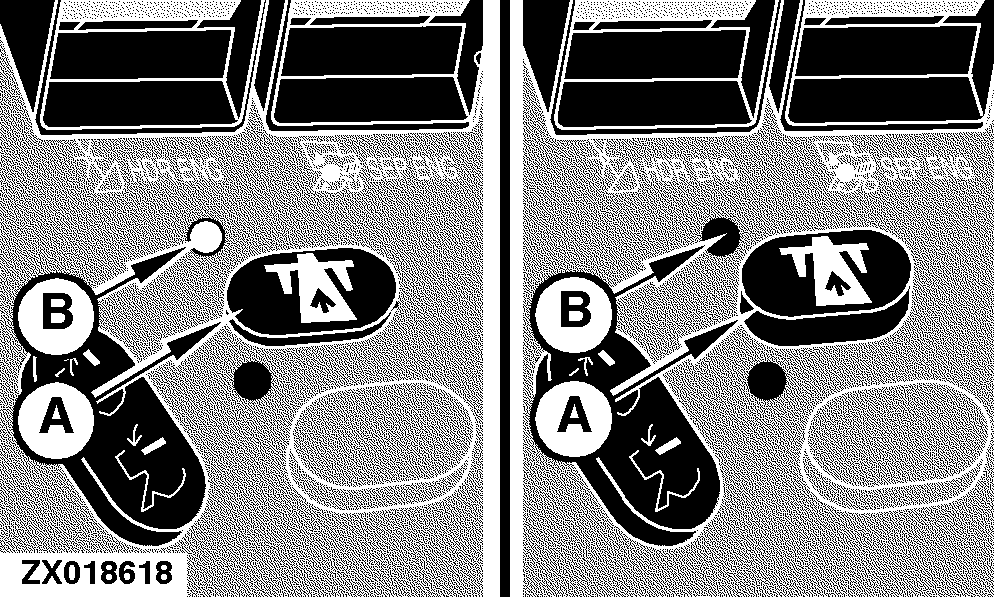

For road travel, switch (A) must be pressed. If the road safety switch is pressed, the indicator light (B) will come on indicating the switch is in the road engage position. Pressing the switch will disengage the following functions:

  • Header height control
  • Resume to cut
  • Reel raise/lower and reel fore/aft
  • Unloading auger
  • Auger swing
  • Header raise/lower
  • Separator engage
  • Automatic Header Control System
  • Header engage
  • Hillmaster leveling system

To re-engage the above functions for field operation, press the road safety switch, then the desired function switch.

causym CAUTION: For road travel, road safety switch must be pressed. Before driving on public roads, also move header and unloading auger to transport position and close grain tank covers.

In case of Hillmaster combine, the switch must always be in road travel position!

ZX018617
ZX018618
