Daily Preparations Before Driving Hillmaster Combine

Before driving the hillmaster combine, the following tests have to performed for safety reasons.

OUZXMAG,0000764 -19-05SEP00-1/5

causym CAUTION: Do not attempt to operate Hillmaster combine unless all tests are OK! If one of the following tests failed, contact you John Deere dealer.

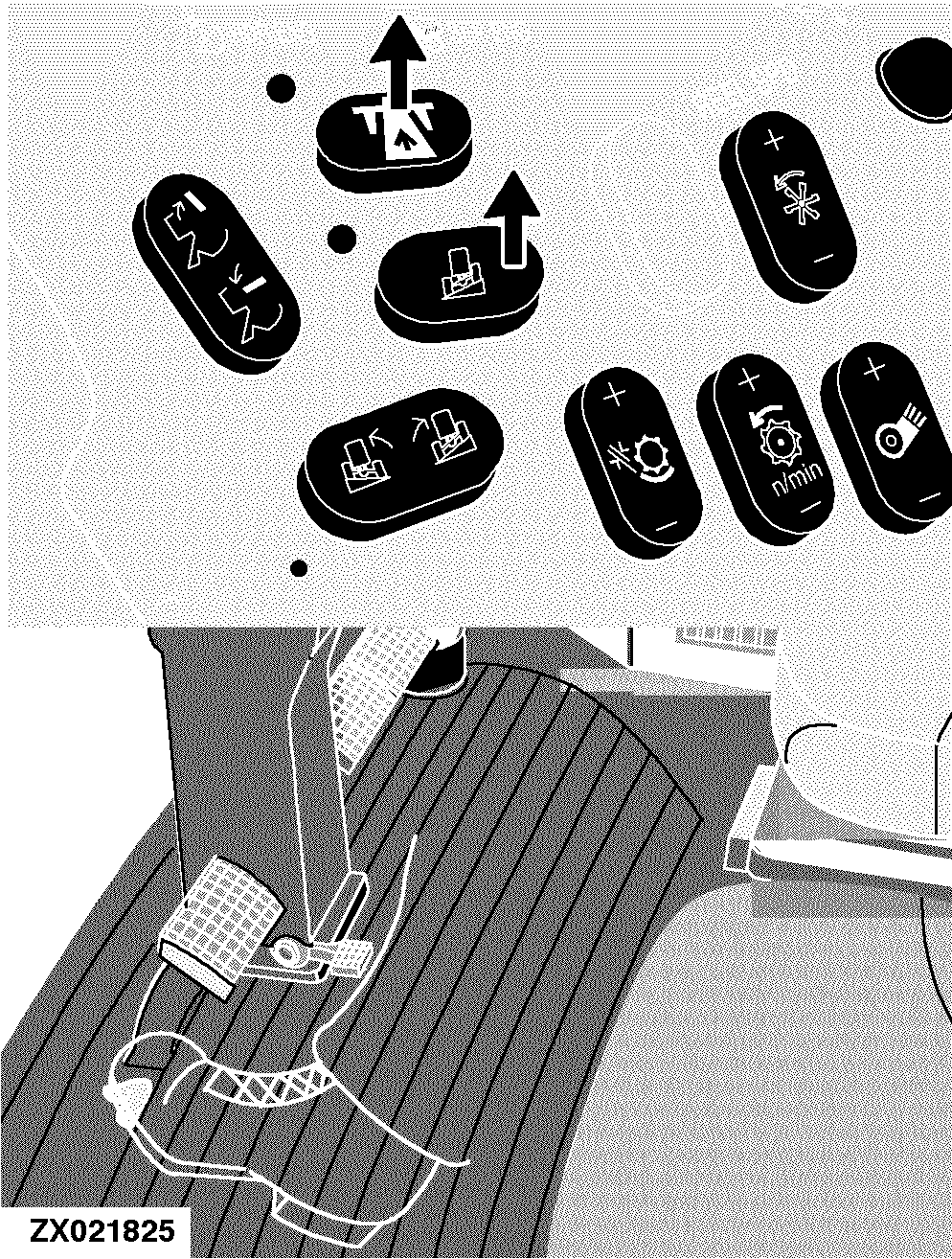

Requirements:

  • Engine running (high speed)
  • Road safety switch in field position
  • Parking brake released
  • Automatic leveling control switch in " OFF " position.
ZX021825

OUZXMAG,0000764 -19-05SEP00-2/5

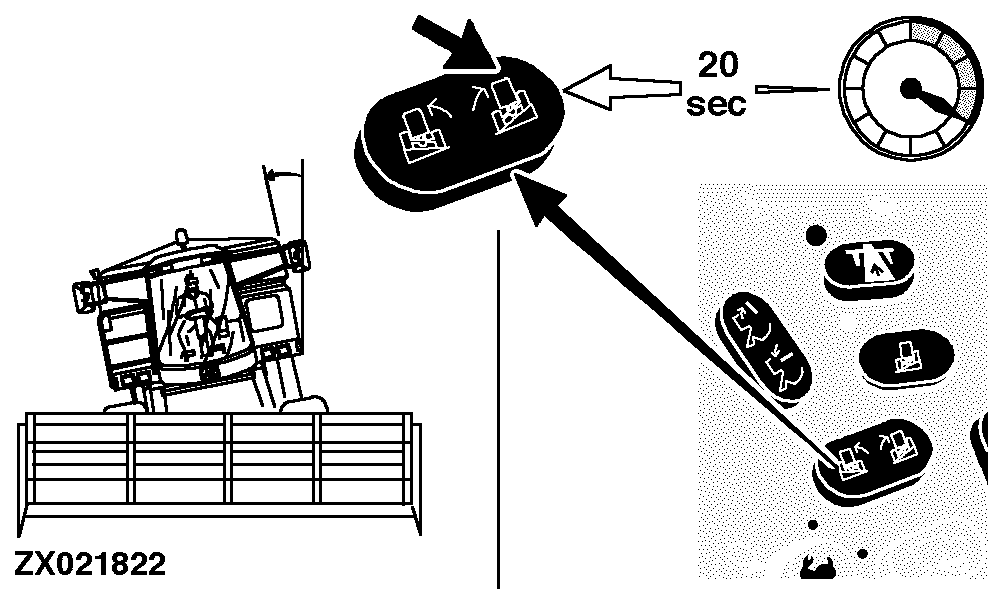

1. Test 1:

Move manual leveling control switch to right-hand tilt position for 20 seconds-combine should tilt to the right.

ZX021822

OUZXMAG,0000764 -19-05SEP00-3/5

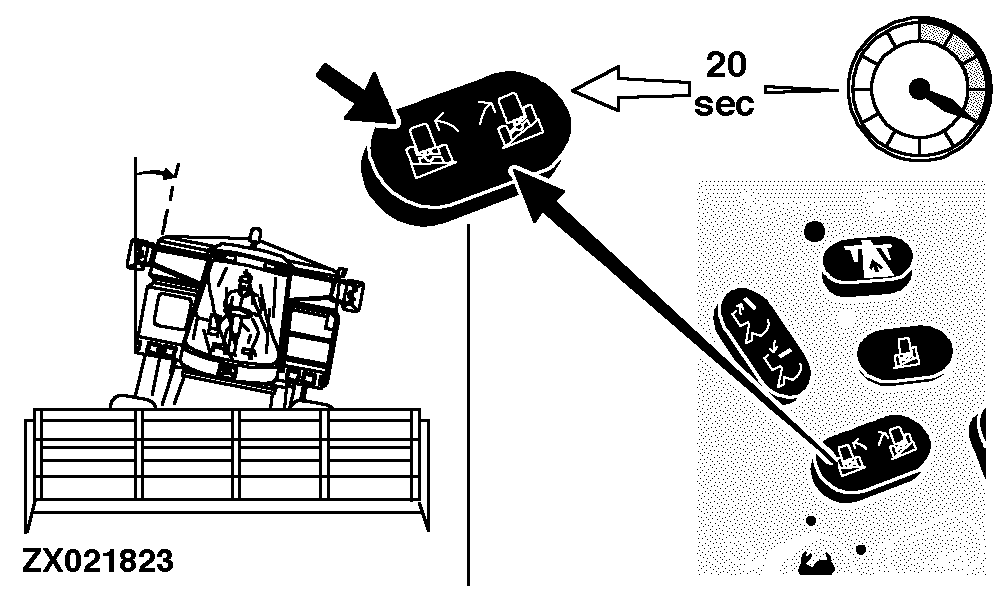

2. Test 2:

Move manual leveling control switch to left-hand tilt position for 20 seconds-combine should tilt to the left.

ZX021823

OUZXMAG,0000764 -19-05SEP00-4/5

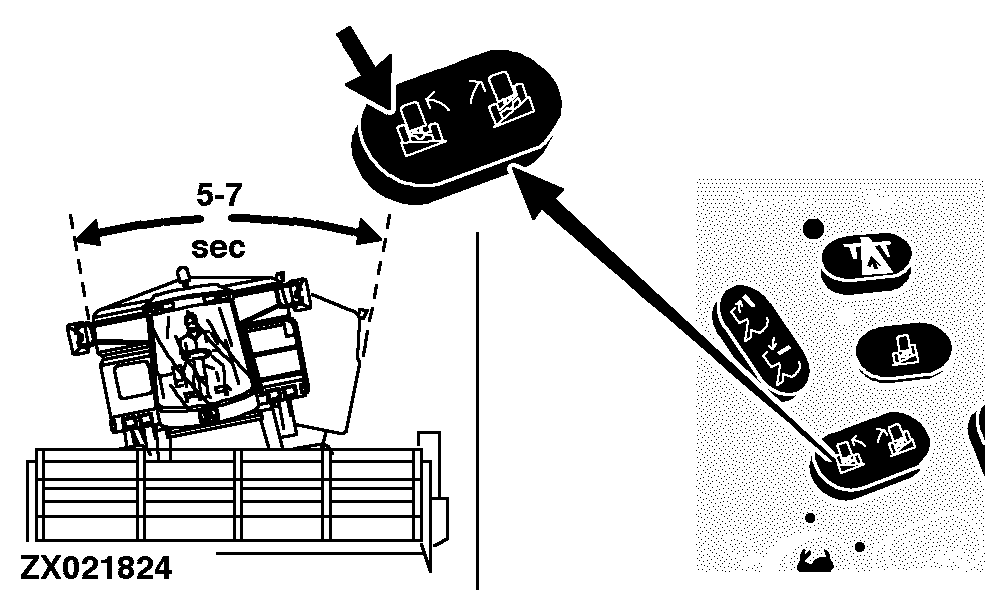

3. Test 3:

By operating manual leveling control switch, bring combine from maximum left tilt to maximum right tilt-the time required to do this should be 5-7 seconds.

ZX021824
