Operating With Automatic Leveling Control

When working in the field, place road safety switch (A) to field position-the indicator light (B) will go off and leveling control switch (C) to position for automatic operation-the indicator light (D) will come on.

Press manual leveling control switch (E) alternatively on the l.h. and r.h. side to raise the machine in working position.

Now the combine will automatically level on slopes up to 15%.

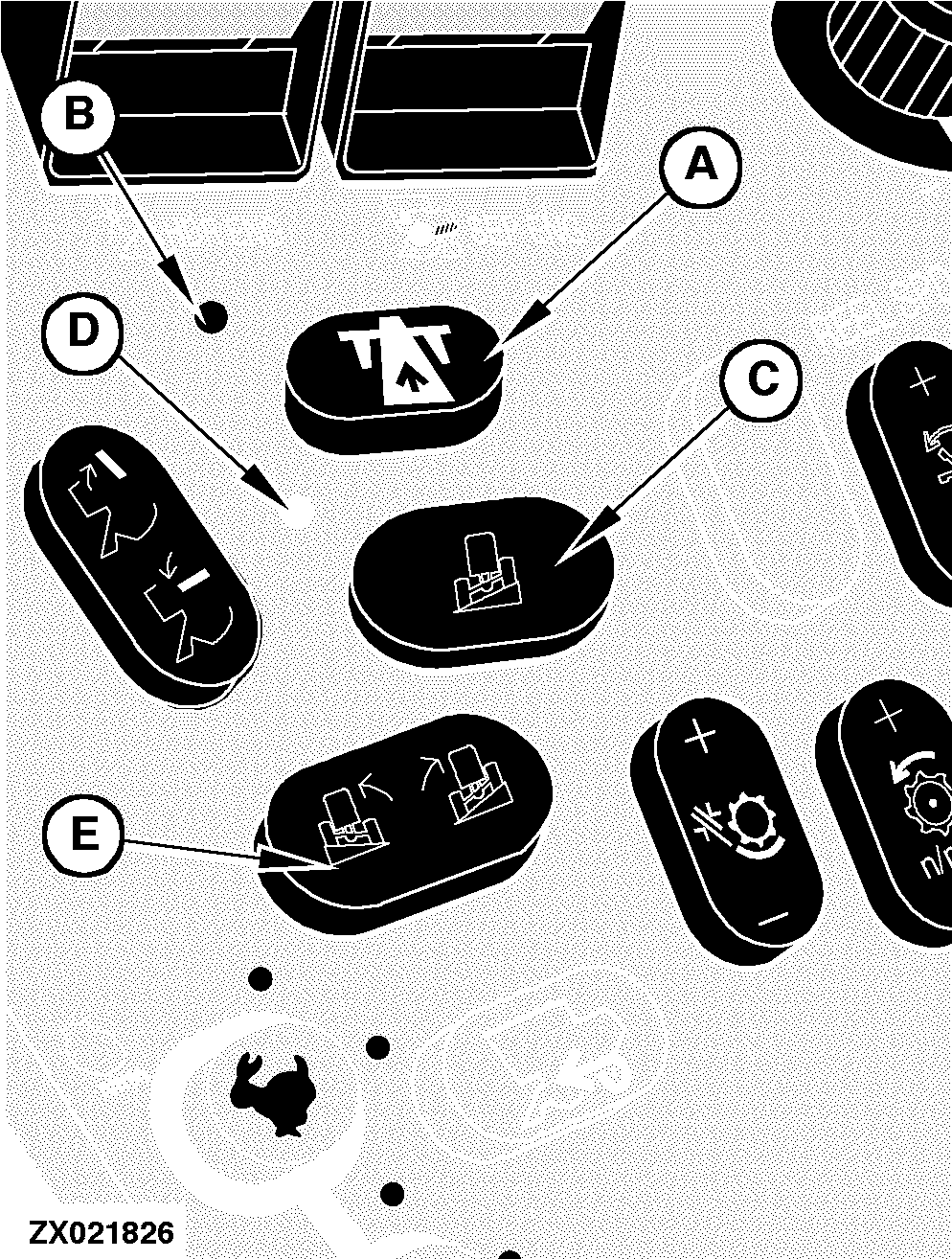

A-Road Safety Switch
B-Indicator Light
C-Automatic Leveling Control Switch
D-Indicator Light
E-Manual Leveling Control Switch
