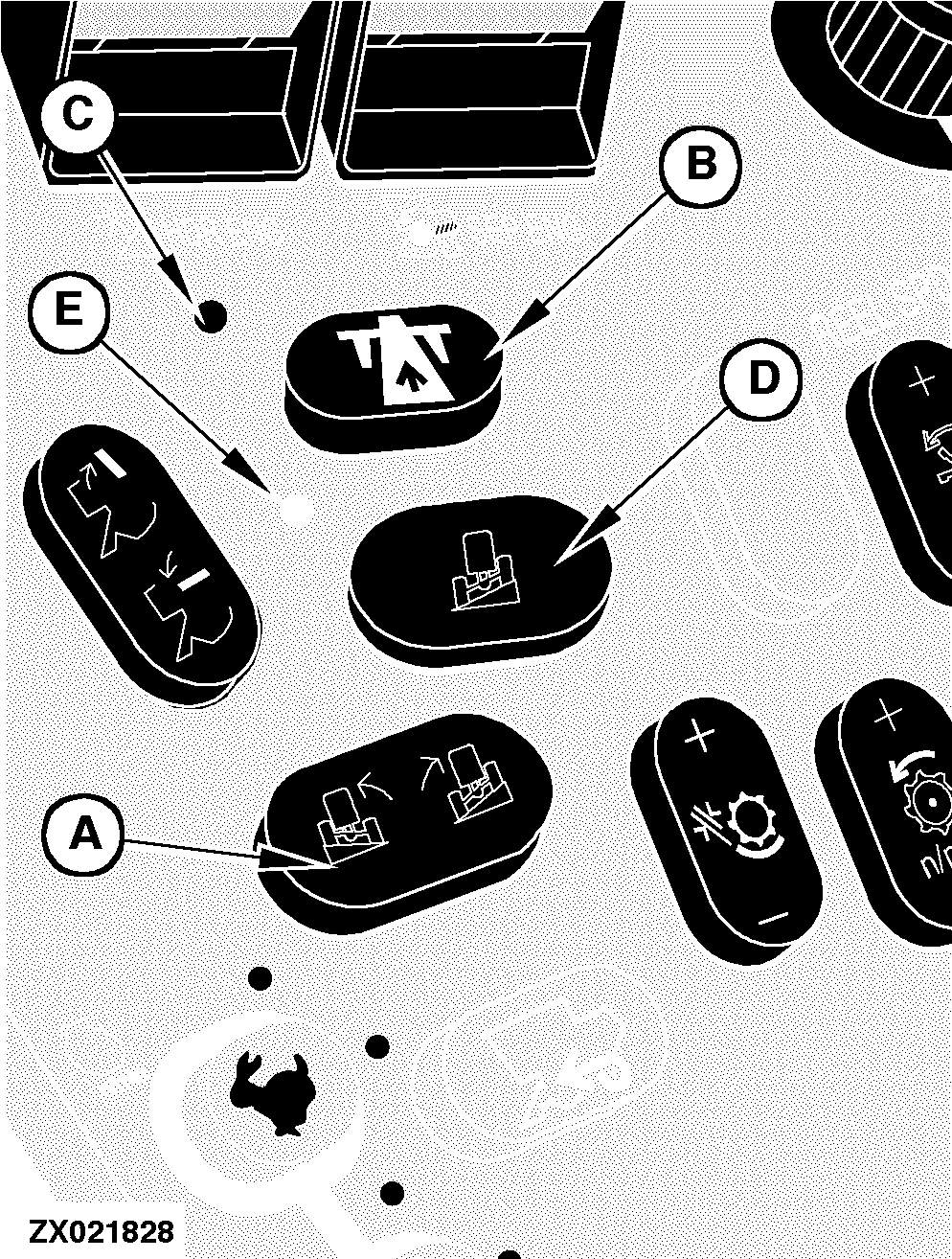

Operating With Manual Leveling ControlUse the manual leveling control switch (A) to manually tilt the combine or to place combine to the road travel position. |
OUZXMAG,0000766 -19-05SEP00-1/3 |
|
1. To Manually Tilt the Combine: Place road safety switch (B) in field position-the indicator light (C) will go off and automatic leveling control switch (D) to " OFF " position-the indicator light (E) will go off. Press manual leveling control switch (A) on the l.h. or r.h. side to tilt the machine as desired.
|
|
OUZXMAG,0000766 -19-05SEP00-2/3 |
|
2. To Place Combine to Road Travel Position: Place road safety switch (B) in field position-the indicator light (C) will go off. Press and hold automatic leveling control switch (D) to " ON " position-the indicator light (E) will come on. Press manual leveling control switch (A) alternatively on the l.h. and r.h. side to lower the machine to road travel position.
|
|
OUZXMAG,0000766 -19-05SEP00-3/3 |
