Multi-Function Lever

IMPORTANT: If the hydro charge pressure light comes on in the warning display panel when the lever is moved, check hydrostatic/hydraulic oil level or replace filter. If this does not correct the problem, see your John Deere dealer.

Move lever forward to go forward.

Move lever to the right and rearward to go backward.

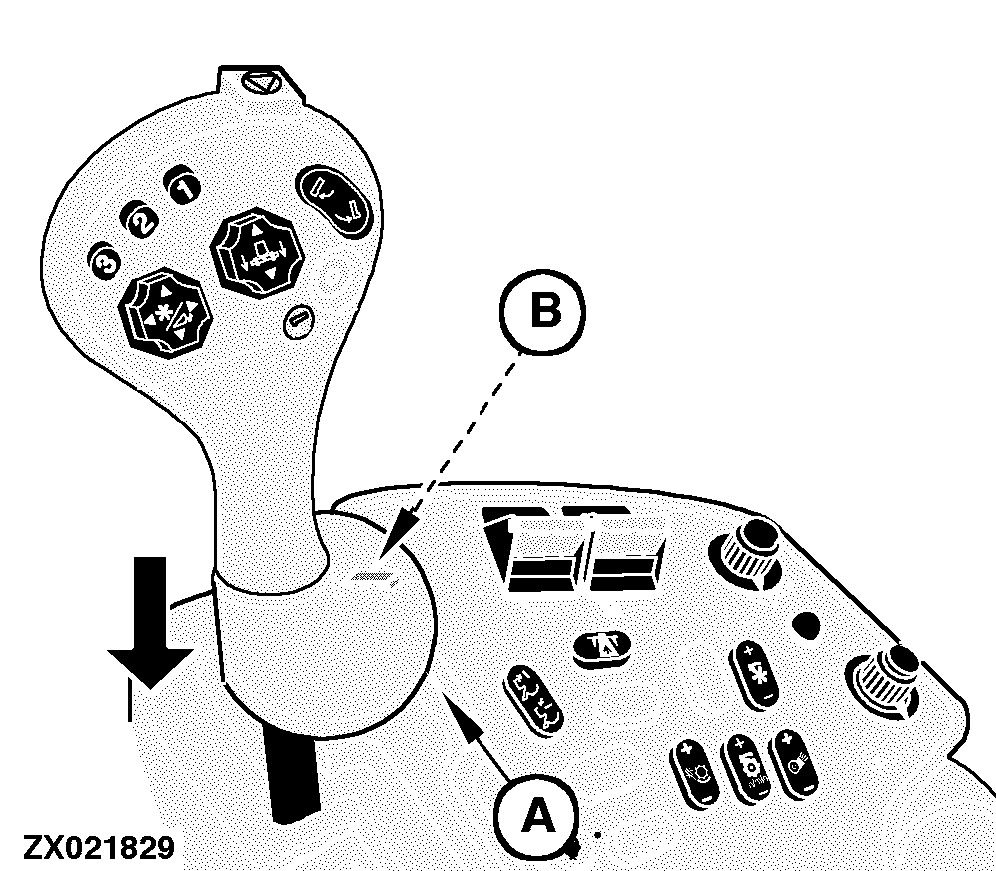

The palm rest (A) is adjustable with three detent positions. To lower the palm rest, release lever (B) under the palm rest.

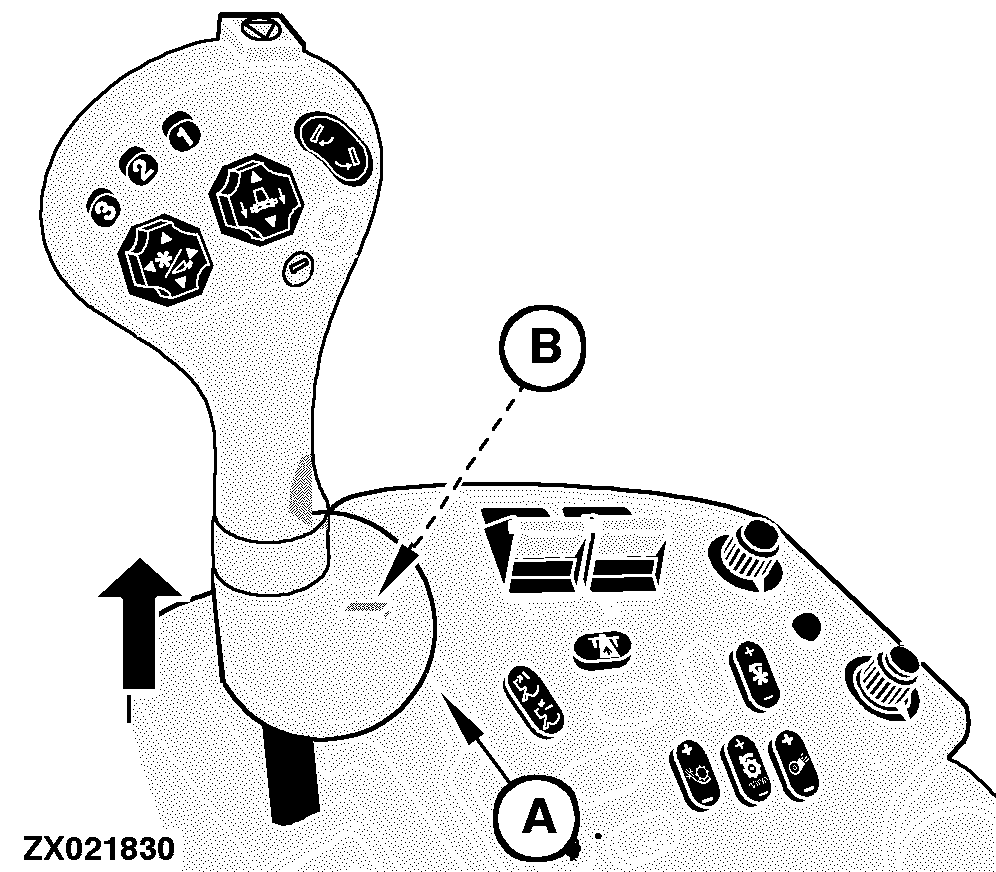

To raise the palm rest, release lever (B) and lift the hand rest.

A-Hand Rest
B-Lever

OUZXMAG,0000767 -19-05SEP00-1/1
