Quick-Stop Switch

IMPORTANT: Header drive can be disengaged by this switch in case of malfunctions.

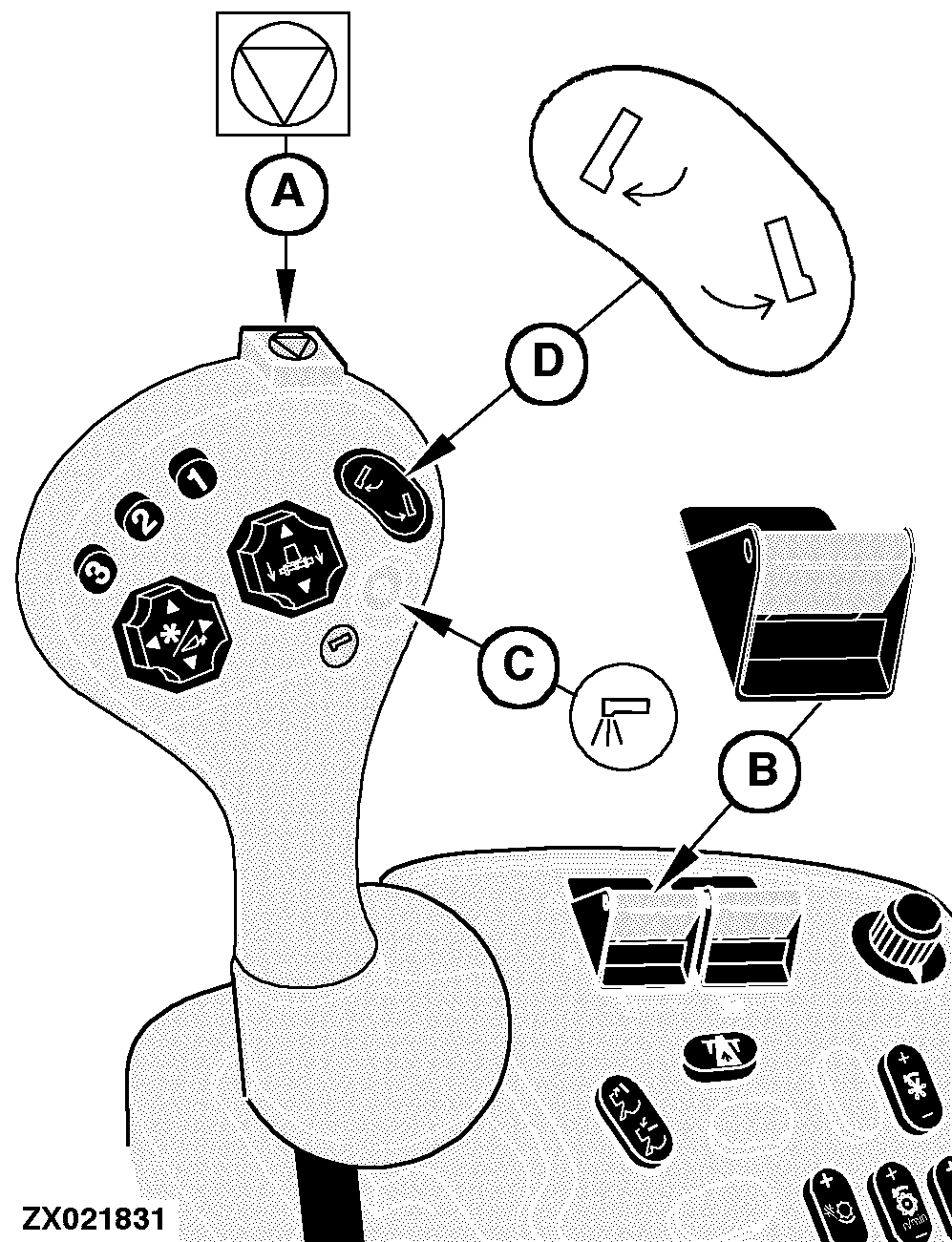

The Quick Stop switch (A) shuts off the header engage (B), unloading auger drive (C), and unloading auger swing (D) at the same time. Press switch once to stop these functions simultaneously.

Unloading auger drive or unloading auger swing can be restarted by pushing the button on the multi-function handle. To re-engage the header drive, turn header switch off and on.

Before doing so, make sure that the malfunction has been corrected.


A-Quick Stop Switch
B-Header Engage
C-Unloading Auger Drive
D-Unloading Auger Swing
