Unloading Auger Swing Switch (Black)

To operate the auger switch, the road safety switch (A) must be in field position.

Five functions are possible:

  • Manual swing out
  • Automatic swing out
  • Neutral
  • Manual swing in
  • Automatic swing in

Press top of switch (B) to swing auger out. Press bottom of switch to swing auger in.

For manual control, press the switch down part way and hold until auger reaches the desired position. The auger stops when the switch is released.

For automatic control, press the switch all the way down and release it. The auger will swing to the full out or full in position without holding the switch.

NOTE: The automatic auger swing will not function when the unloading auger drive is engaged.

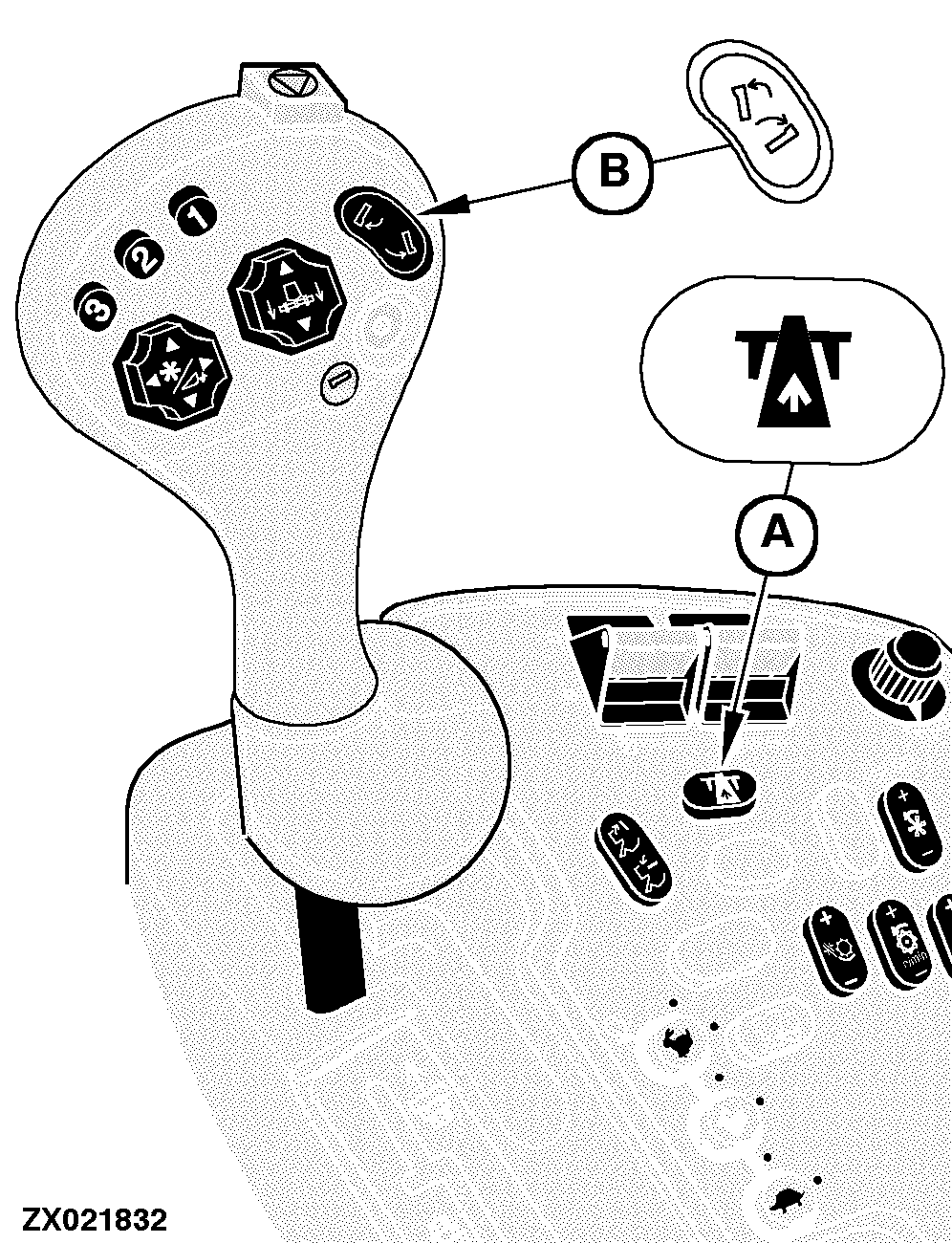

ZX021832


A-Road Safety Switch
B-Unloading Auger Swing Switch
