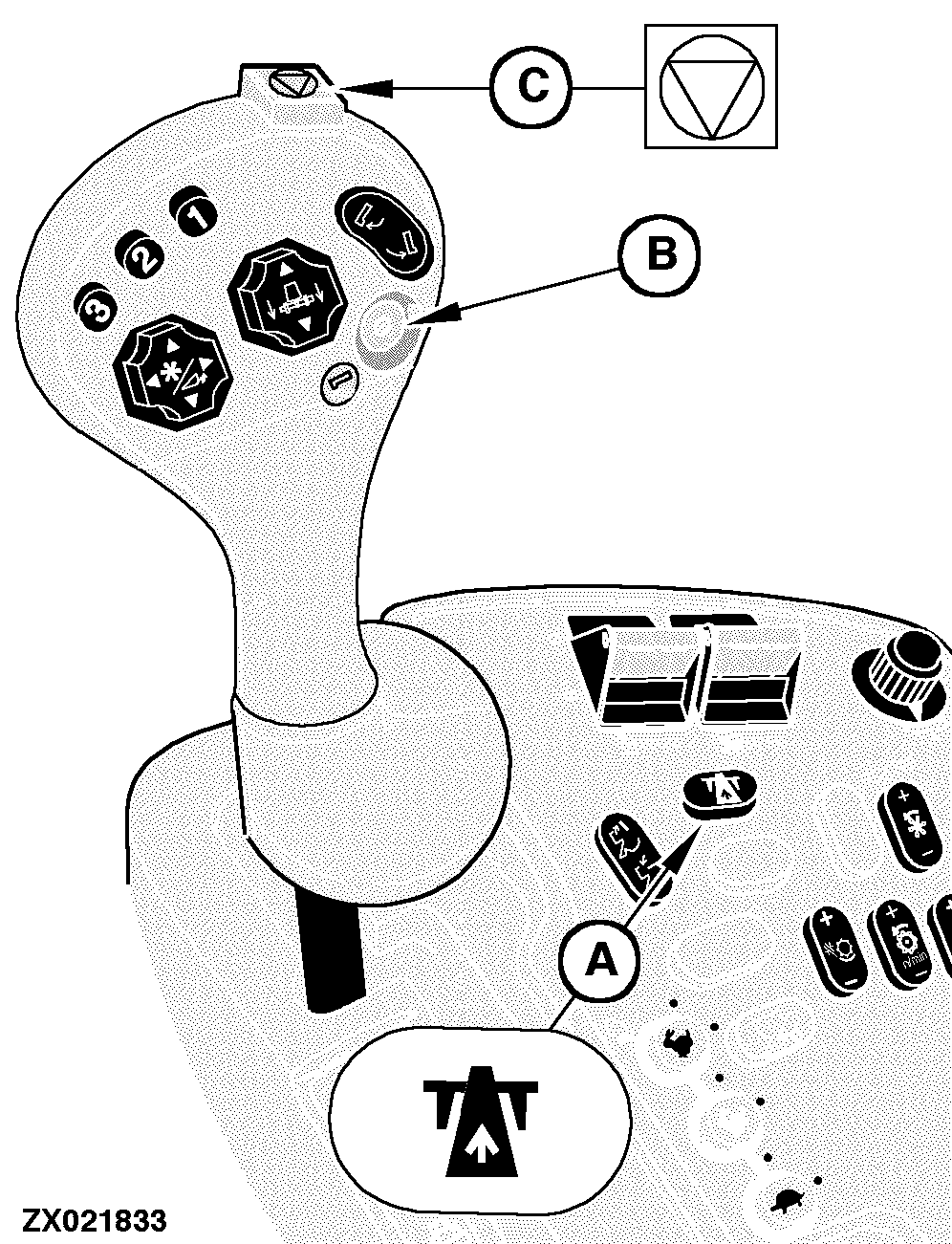

Unloading Auger Drive Switch (Yellow)To engage the unloading auger drive, the road safety switch (A) must be in field position. Press switch (B) to turn unloading auger drive on/off. A lighted indicator on the switch is on when the drive is engaged. The unloading drive can also be turned off with the Quick Stop switch (C) on the front of the multi-function lever. To re-engage the unloading auger if the header and unloading auger are stopped with the Quick Stop switch, press the unloading switch once. The unloading drive will engage only while the button switch is held in while the auger is in the auto-swing mode and when the auger is manually swung out more than 50%.
|
|
OUZXMAG,000076A -19-05SEP00-1/1 |
