Reel Lift/Reel Fore And Aft Or Variable Speed Feeder House Switch

To operate reel lift/reel fore aft switch (A), the road safety switch (B) must be in field position.

Push and hold bottom of switch to raise reel. Push and hold top of switch to lower reel.

Push and hold left side of switch to move reel forward. Push and hold right side of switch to move reel rearward.

When equipped with variable speed feeder house and corn head, or row-crop head, this switch controls front end speed and corn head adjustable deck spacing (if equipped). Push and hold bottom of switch to increase speed. Push top of switch to decrease speed. Engine and header must be running to adjust speed.

If the Automatic Header Control or automatic auger swing are operating when this switch is used, the reel or the variable speed feeder house response may vary.

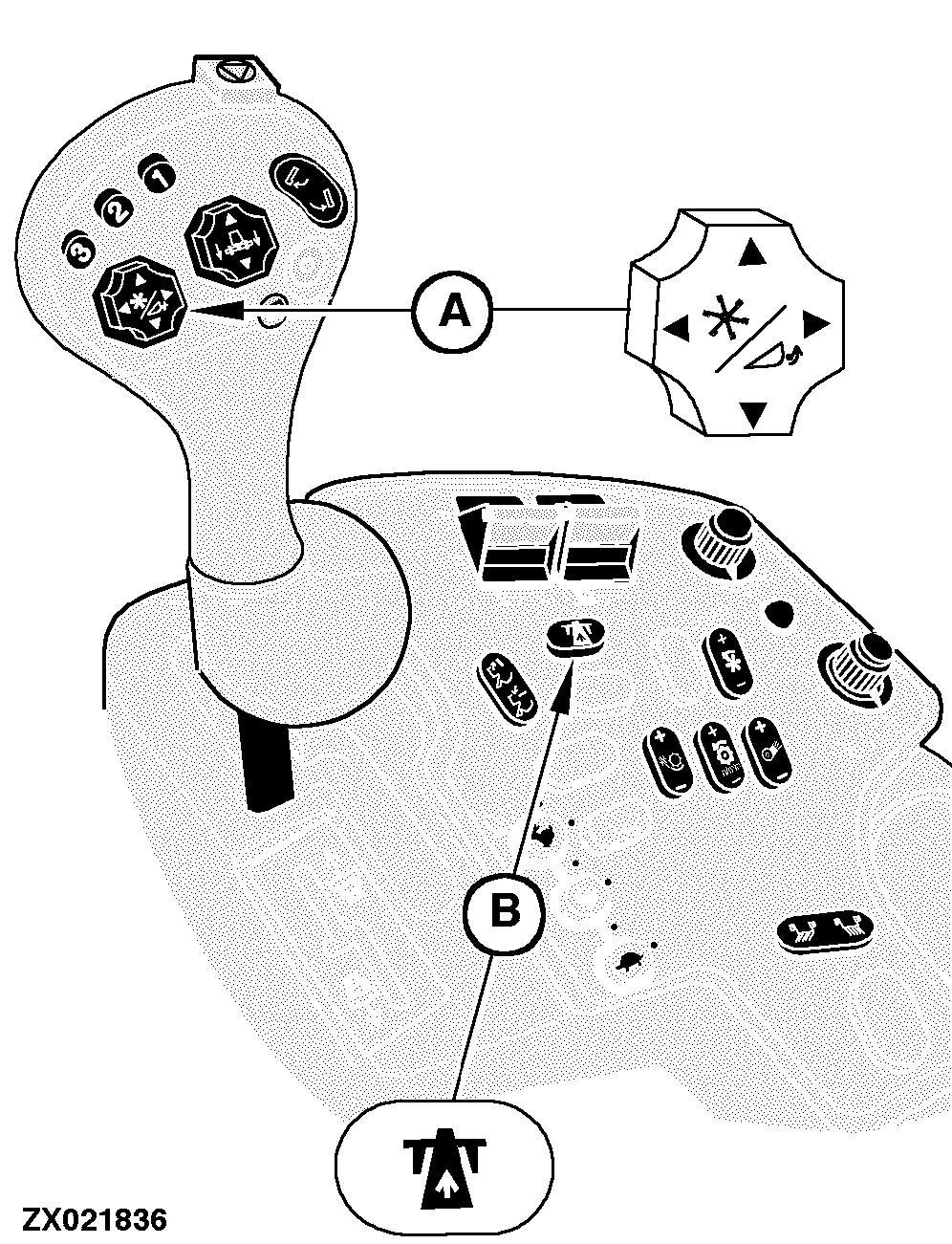

A-Reel Switch
B-Road Safety Switch
