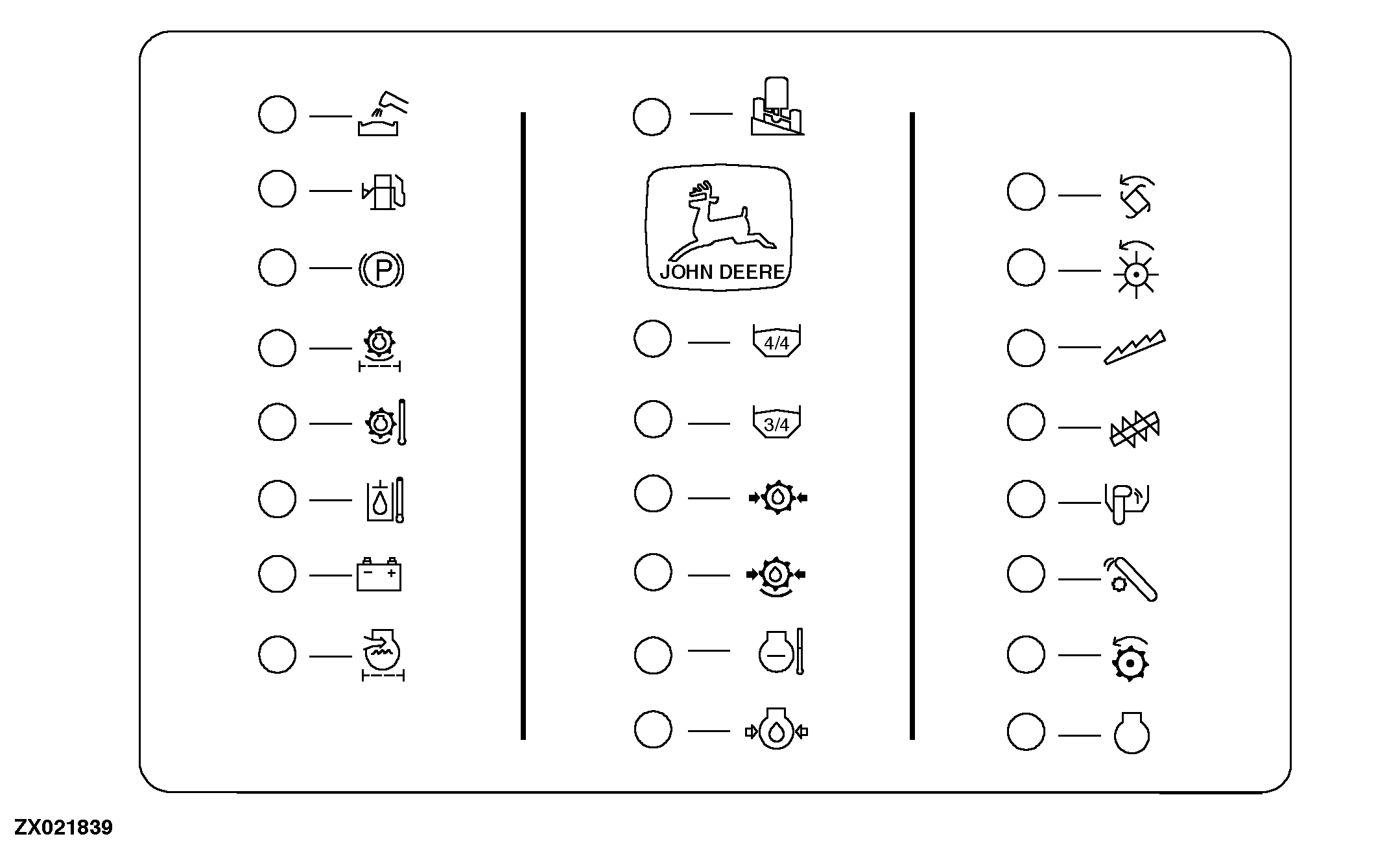

These lights monitor the most important combine functions (road and operating safety, engine).

Warning display panel shows a red, yellow or green light and sounds a buzzer for the following conditions.

Priority 1:

Red warning light with acoustical warning signal-Stop engine at once and correct problem.

Priority 2:

Yellow warning light with acoustical warning signal-Service or correct problem. Stop engine as required.

Priority 3:

Green warning light with acoustical warning signal-Be aware of condition.

NOTE: When key is in start position, all lights on the panel will come on.

These warning lights dim at night when the field or road lights are on.
