Header Calibration

The header calibration procedure must be performed when a header is initially hooked up and when header height sensors or the pressure sensor are replaced.

If the header has no height sensors, this procedure can be used to set the feederhouse angle at which the header is on the ground, to calibrate the display for return-to-cut operation. See the angle sensor calibration procedure for calibrating the tilt angle sensor.

Prepare Header For Calibration:

  • Hook up header to the combine and ensure header harness is connected to combine harness. Check that the header height sensors are in working condition.
  • Move the machine onto a level concrete surface.

OUZXMAG,000078A -19-06SEP00-1/10

1- Press the diagnostic switch. dIA will appear on the triple display tachometer.

ZX018729

OUZXMAG,000078A -19-06SEP00-2/10

2- Press the calibration switch. CAL and ACF will appear on the tachometer.

ZX018730

OUZXMAG,000078A -19-06SEP00-3/10

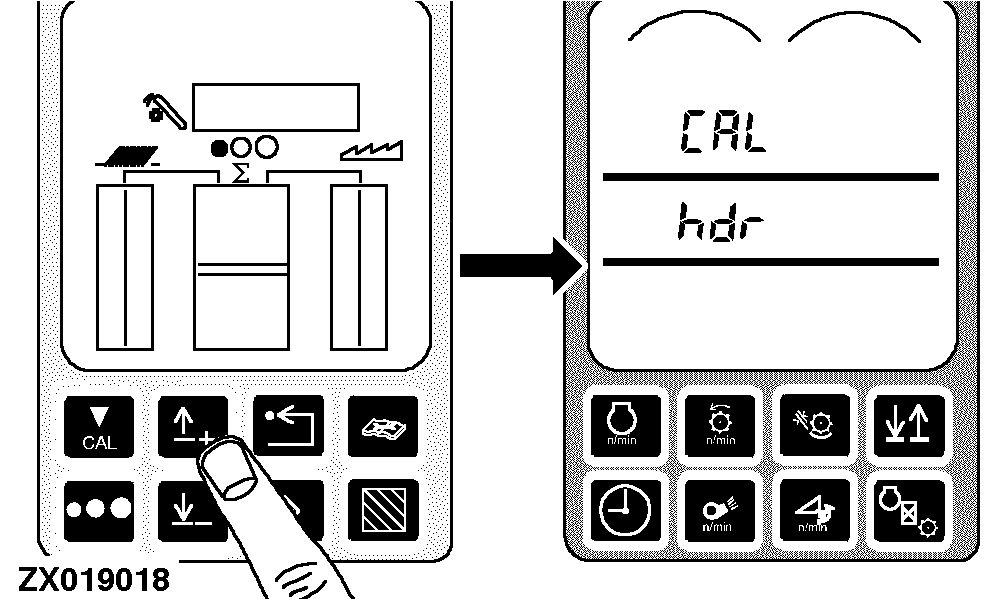

3- Press the up or down arrow switch to access the hdr calibration mode. CAL and hdr appear on the tachometer.

ZX019018

OUZXMAG,000078A -19-06SEP00-4/10

4- The header may be moved with the header lift switch on the multifunction lever.

Lower the header until it rests on the ground. Tilt the header if necessary so that the ends of the header contact the ground at the same time.

ZX022456

OUZXMAG,000078A -19-06SEP00-5/10

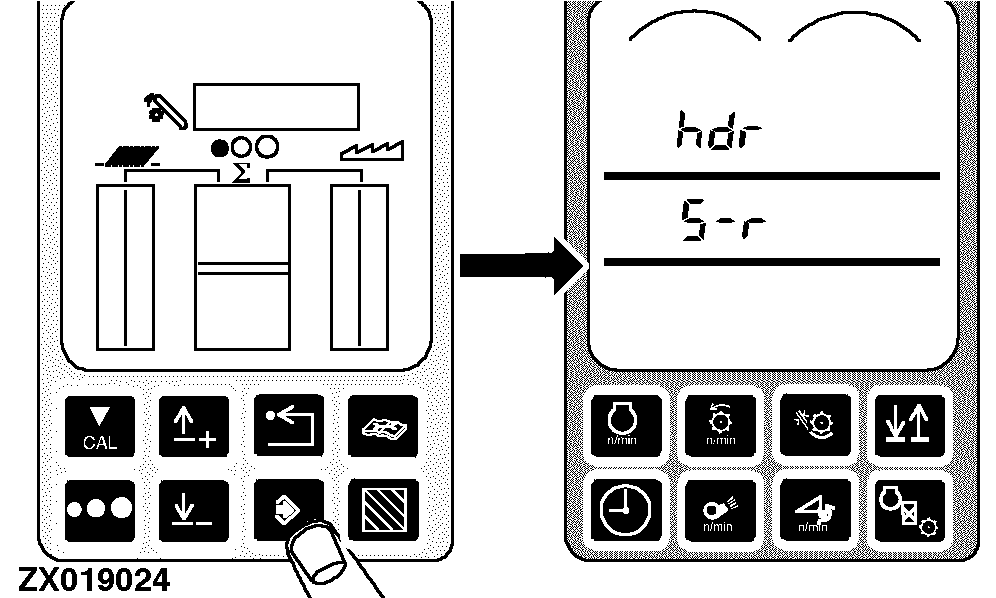

5- Press the enter switch. hdr and S-r should appear on the tachometer.

If the header has no height sensors and is being calibrated for the display for resume to cut only, go to step 6. Otherwise skip the step 6 and go to step 7.

ZX019024

OUZXMAG,000078A -19-06SEP00-6/10

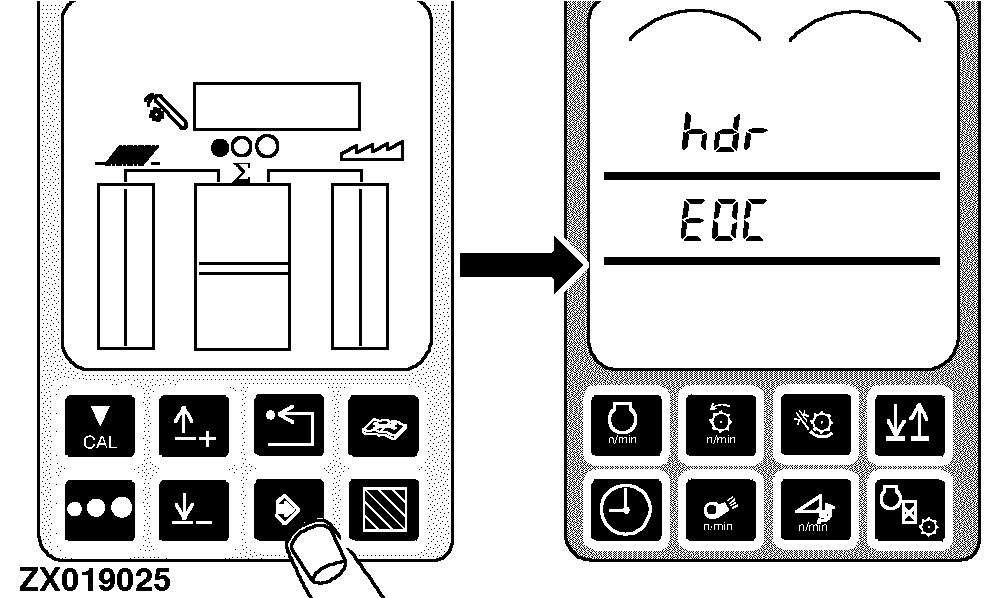

6- Press the enter switch. hdr and EOC should appear on the tachometer.

Skip to the step 9.

ZX019025

OUZXMAG,000078A -19-06SEP00-7/10

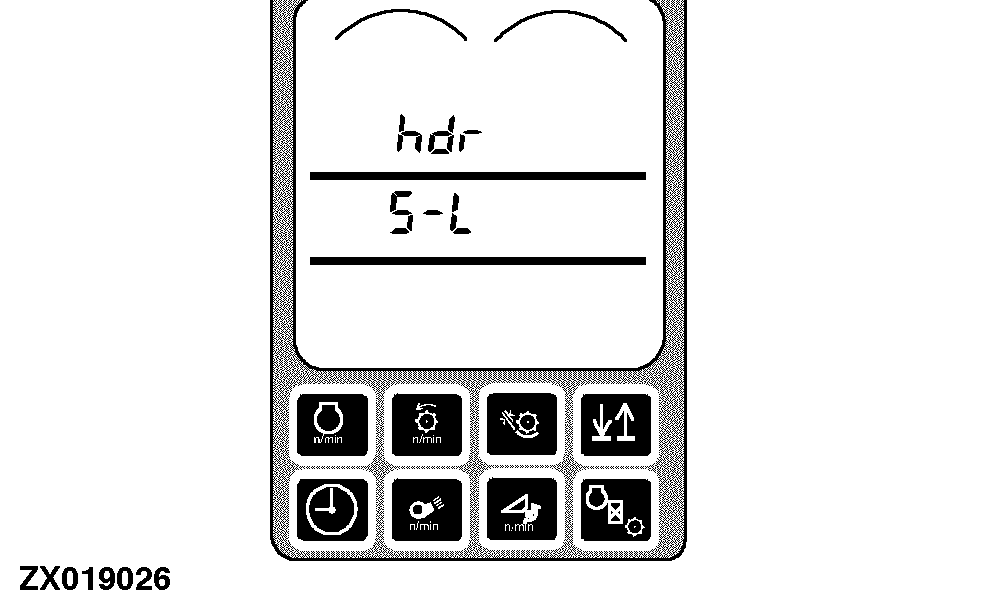

7- Press and hold the header lift switch (slow raise) on the multifunction lever.

The header will slowly rise until the height sensors lose contact with the ground. After the header stops moving, the tachometer should display hdr and S-L.

ZX022456
ZX019026

OUZXMAG,000078A -19-06SEP00-8/10

8- Press and hold the header lift switch (slow lower) on the multifunction lever.

The header will lower until it rests on the ground. After the header stops moving, the tachometer should display hdr and EOC.

ZX022456
ZX019027

OUZXMAG,000078A -19-06SEP00-9/10

9- Press the enter switch to store all end of calibration (EOC) values which did not have errors.

If no errors occurred during calibration, the following will be displayed:

  • EOC
  • Er00
  • xxxx cylinder pressure during raise (kPa or psi)
  • xxxx cylinder pressure during lower (kPa or psi)
  • END

If any errors occurred during calibration, previous calibration values are kept and the following will be displayed:

  • EOC
  • Err
  • END

Press the back arrow switch twice to return to normal operation.

ZX018990

OUZXMAG,000078A -19-06SEP00-10/10
