Electrical Straw Chopper Deflector Switch (Optional)

Straw chopper deflector switch (A) controls the direction of the straw chopper vanes.

NOTE: Ignition must be on to adjust straw chopper deflector vanes.

Push and hold symbol (I) to adjust straw chopper deflector vanes to the left or push and hold symbol (II) to adjust straw chopper deflector vanes to the right.

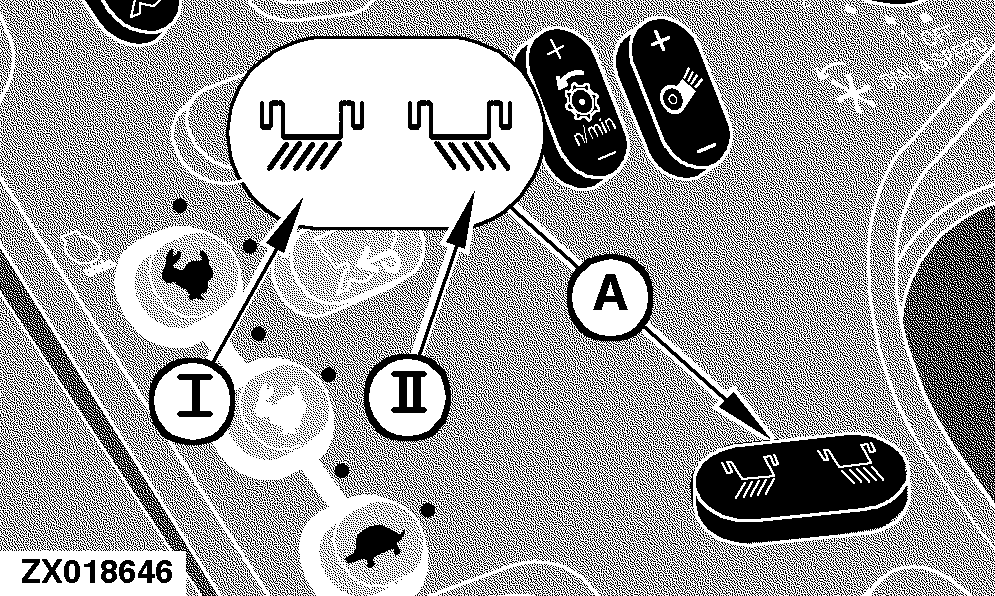

A-Straw Chopper Deflector Switch
I-Adjust To The Left
II-Adjust To The Right

OUZXMAG,000078C -19-07SEP00-1/1
