Right-Hand Side Cab Access

Raise feeder house.

CAUTION: Engine must be off, key removed and parking brake set.

Shut off engine, remove key and lower safety stop.

IMPORTANT: Close cab door before using safety rail next to cab door.

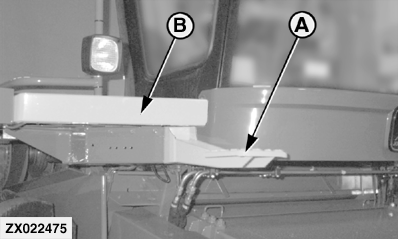

To access right-hand side of the cab use step (A) to get to landing (B).

A-Step
B-Landing

OUZXMAG,0000792 -19-07SEP00-1/1
