Warning Lights

The two position (on and off) warning light switch controls all warning lights on combine and the licence light.

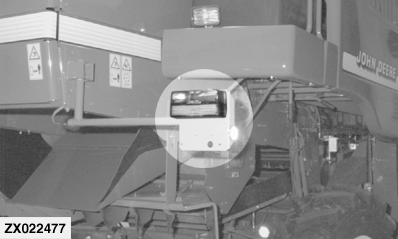

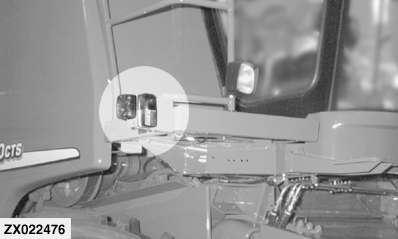

When transporting on a road, position lights give warning to other drivers. These lights are located on both sides at the front and rear of the combine.

CAUTION: Lights must be turned on when transporting.

Road traffic regulations in some countries require that the hazard warning lights must be switched on whenever the combine is stopped at the side of the road.

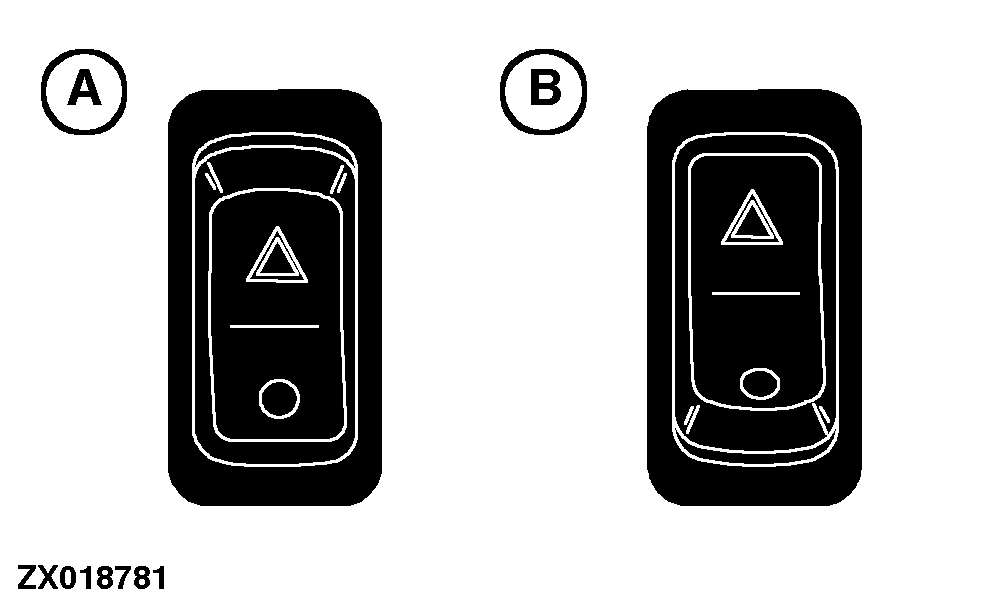

A-Warning Lights, Off
B-Warning Lights, On

OUZXMAG,0000794 -19-07SEP00-1/1
