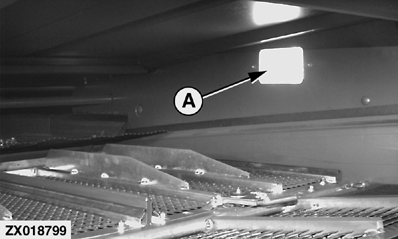

The lights (A) (one on each side) illuminate the cleaning shoe area for easier adjustment or maintenance.

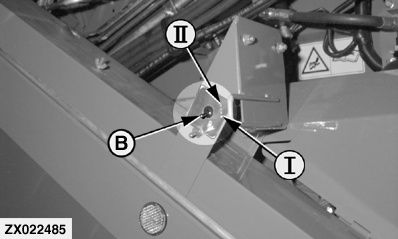

The on/off switch (B) is located above the tailings elevator.
A-Cleaning Shoe Light B-Cleaning Shoe Lights Switch I-OFF II-ON
OUZXMAG,0000798 -19-07SEP00-1/1
