Engine Compartment Lights (Optional)

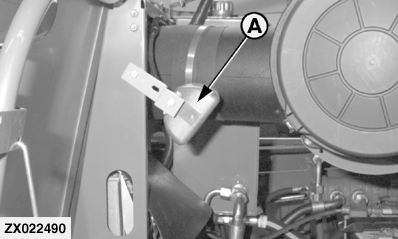

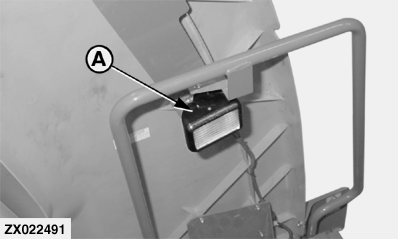

The lights (A) illuminate engine compartment for easier adjustment or maintenance.

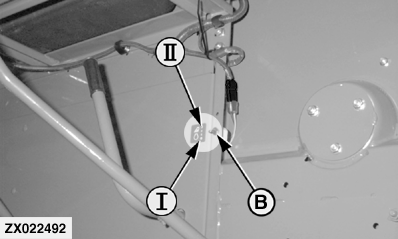

The on/off switch (B) is located underneath the rear ladder.


A-Engine Compartment Lights
B-Engine Compartment Light Switch
I-OFF
II-ON

ZX022490
ZX022491
ZX022492

Engine Compartment Light Switch

OUZXMAG,000079C -19-07SEP00-1/1
