Stopping the Engine

1. Lower header or reel to the ground. Move reel all the way forward.

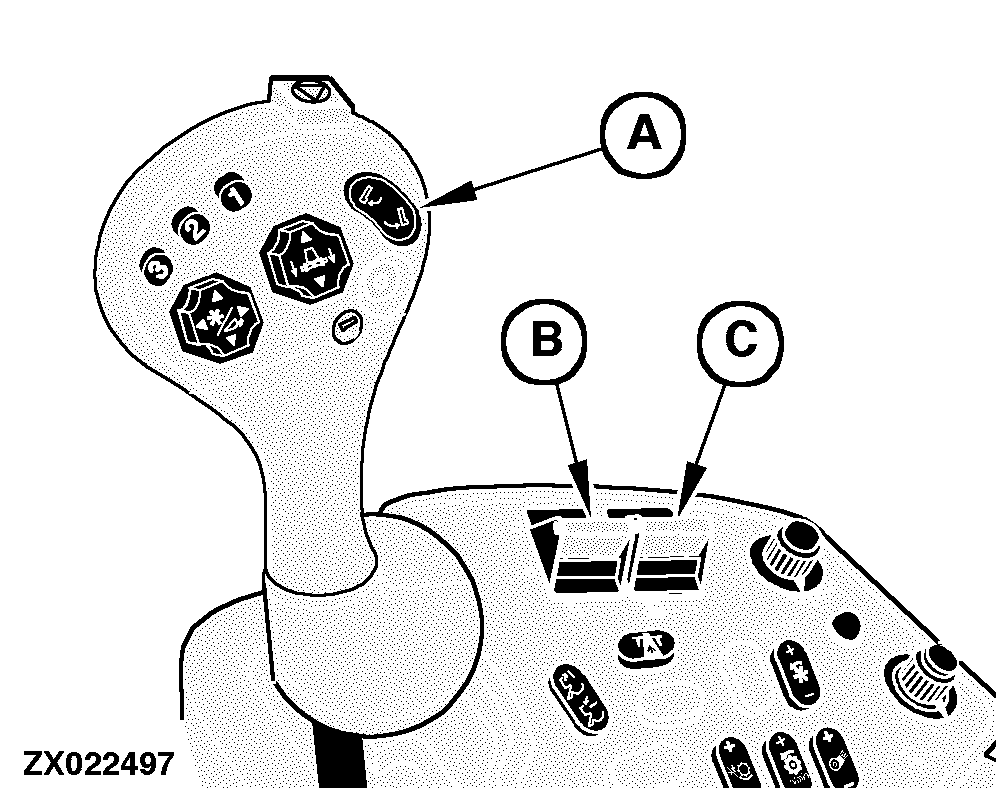

2. Move multi-function (hydro) lever (A) to neutral and stop header (B) and separator (C).

3. Put gear shift lever in neutral.

4. Apply parking brake.

IMPORTANT: Cooling of turbocharger and some engine parts is provided by engine oil. Stopping a hot engine might cause damage to these parts.

5. Before stopping engine that has been operating at working load, idle at least one minute to cool turbocharger.

CAUTION: Remove key from switch to prevent accidents and battery discharge before leaving operator's cab.

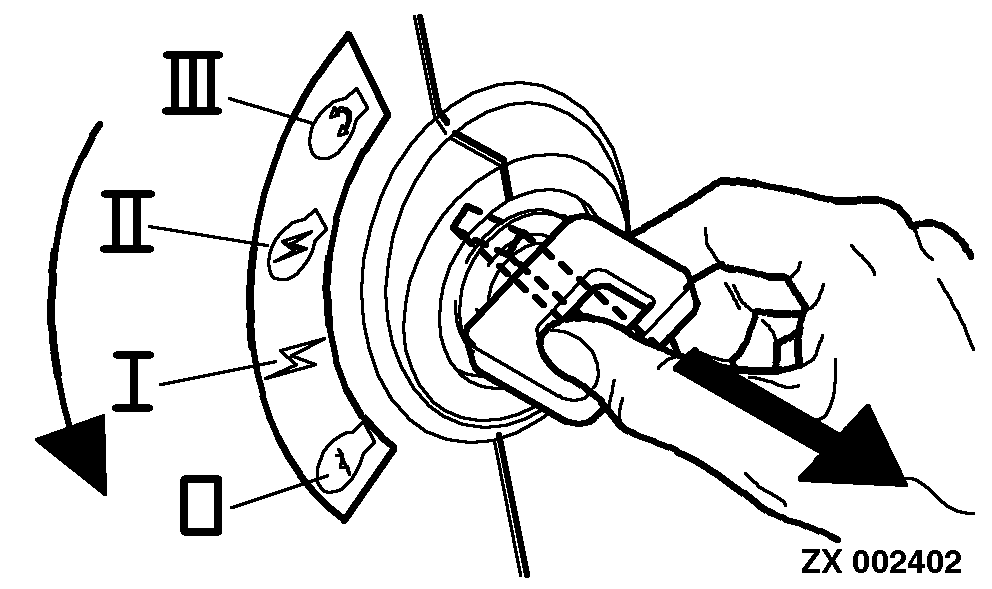

6. Turn key and all other switches off.

OUZXMAG,00007A1 -19-07SEP00-1/1
