Transporting Under Own Power

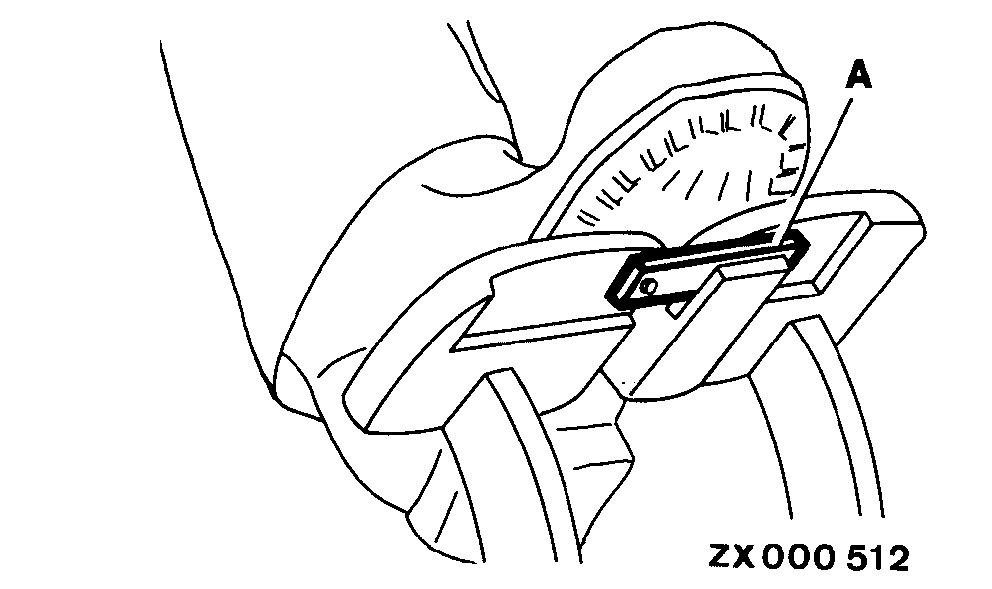

CAUTION: For safety reasons, always couple brake pedals by means of pedal coupler (A) when driving on public roads. This ensures the brakes are actuated together.

For general information on driving, see this Section.

On Hillmaster combine, lower the machine to transport position .

Remove header , if overall width exceeds the legal limits (for details of removal, see relevant operator's manual). Move the feeder house to transport position.

Empty the grain tank .

Swing in the unloading auger .

OUZXMAG,00007A5 -19-07SEP00-1/2

Pivot and secure the access ladder in full forward position to reduce combine width.

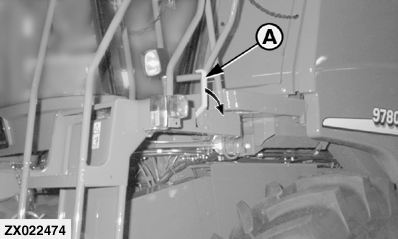

Use lever (A) to unlock ladder and swing to the full forward position.

Switch on the lights , if necessary.

Lower radio antenna .

Close grain tank cover .

A-Lever

OUZXMAG,00007A5 -19-07SEP00-2/2
