Cleaning Out the Combine

CAUTION: To prevent injury, never clean the combine with the engine running and the separator engaged.

The following instructions are recommended when cleaning out the combine for certified seed crops or when transporting the combine.

OUZXMAG,00007A6 -19-07SEP00-1/17

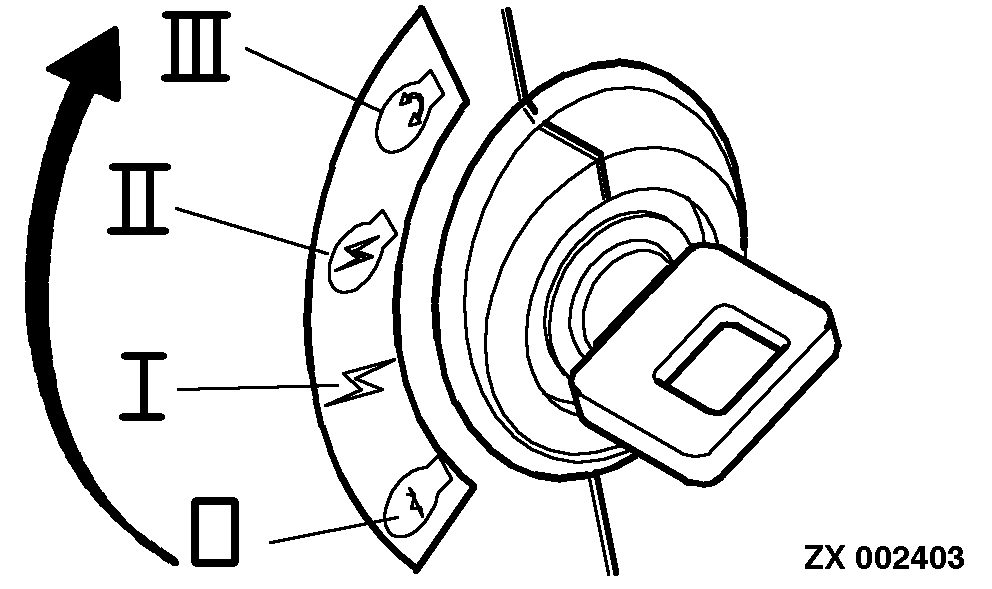

Drive combine over end rows or bumps to jar and shake dirt loose. Stop engine and remove key.

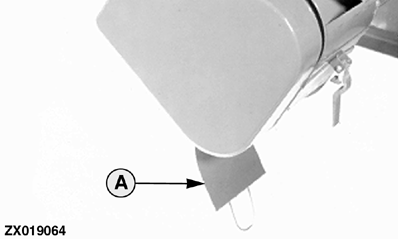

Open or remove all doors and drain holes.

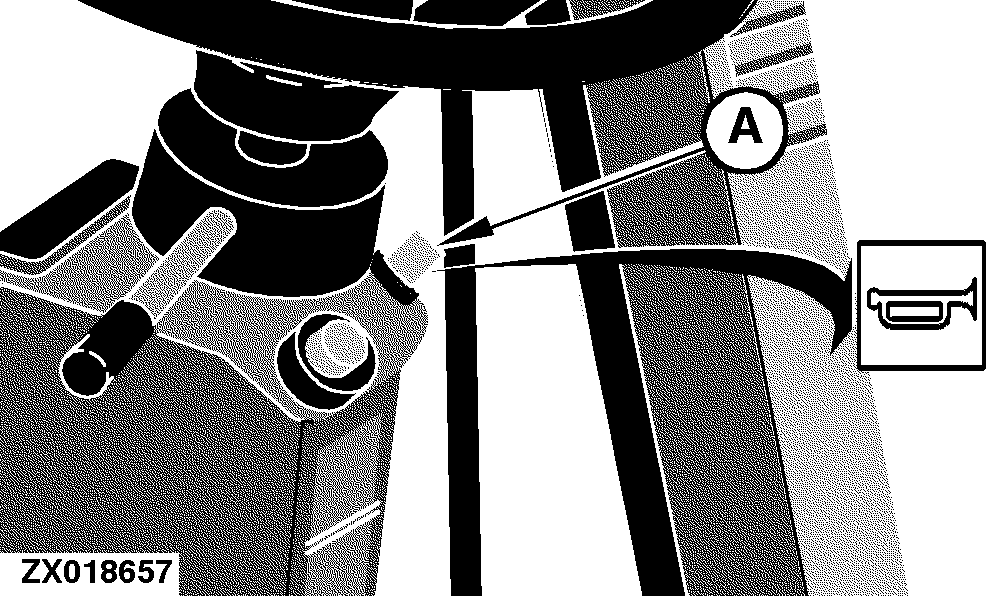

CAUTION: Sound horn (A) to clear everyone from area.

Start engine and let separator run until chaff stops coming out rear. Lower engine rpm to low idle and engage separator several times. The "jogging" of separator at low idle removes dirt from inside of cylinder. Move throttle to high rpm and run for a few minutes. Repeat cycle until chaff no longer comes out of rear. Stay clear of the combine when chaff discharges. Raise reel until it stops. Also engage unloading auger to empty it.

Stop engine and remove key.

OUZXMAG,00007A6 -19-07SEP00-2/17

CAUTION: Block header safely so it will not move. Lower reel safety stops.

Remove header from combine.

OUZXMAG,00007A6 -19-07SEP00-3/17

CAUTION: Sound horn to clear everyone from area, then start engine.

Drive combine straight back 3 m (10 ft.) onto blocking so right-hand side is about 150 mm (6 in.) higher, or park on incline so dirt can run out. Set park brake and block wheels.

Stop engine and remove key.

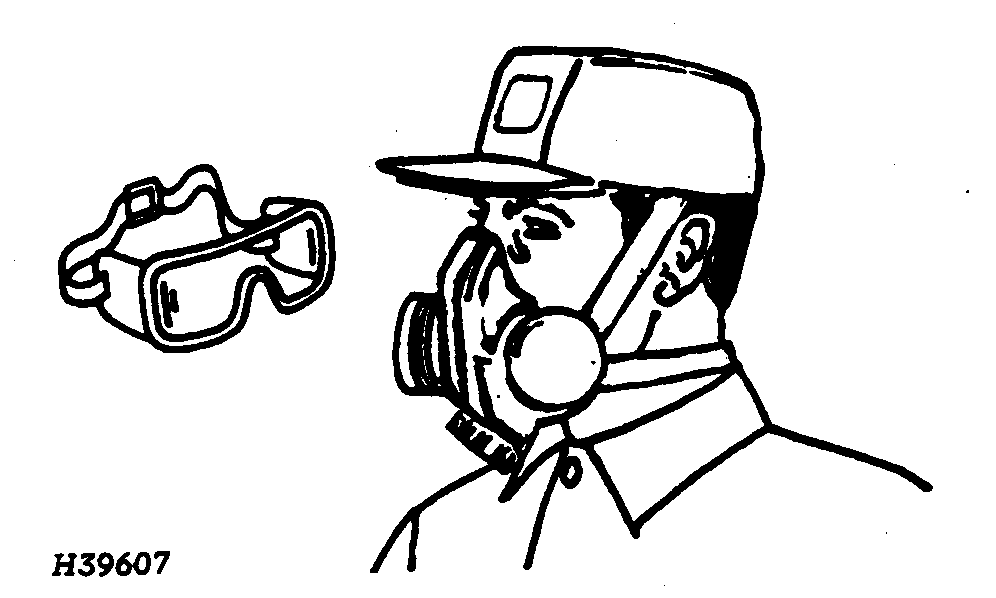

CAUTION: When working with compressed air in dusty conditions, you must wear goggles and dust mask for personal protection. Air hose must have a 2 m (6 ft.) wand (end).

Start at top of combine and work down.

OUZXMAG,00007A6 -19-07SEP00-4/17

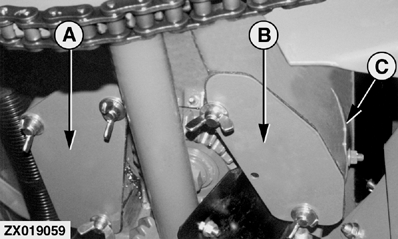

Remove cleanout doors (A), (B) and (C).

Clean grain from under grain tank cross augers over to the sump.

Clean grain from edges of unloading auger sump to the bottom. Grain must be cleaned out these doors as you are standing on the ground.

OUZXMAG,00007A6 -19-07SEP00-5/17

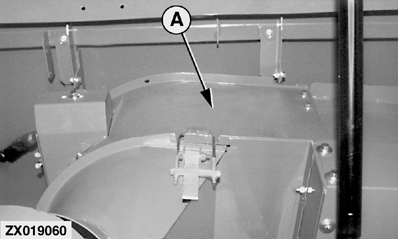

Open lower clean grain elevator door (A).

Remove nuts and take off top cleanout door.

Clean top area and down into clean grain elevator to clean elevator chain. Clean all sides.

OUZXMAG,00007A6 -19-07SEP00-6/17

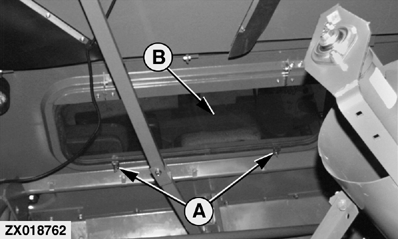

Loosen clamps (A) and swing grain tank window (B) up.

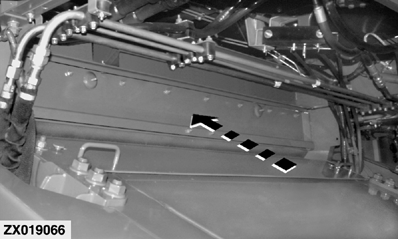

Clean out area behind cab, around primary countershaft and over cylinder.

OUZXMAG,00007A6 -19-07SEP00-7/17

Remove panel in rear of grain tank and clean out this side of engine area.

OUZXMAG,00007A6 -19-07SEP00-8/17

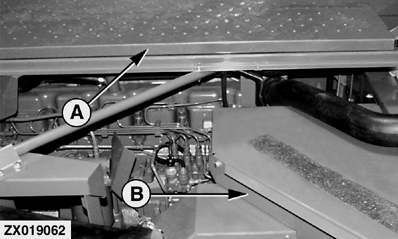

Open cover (A) and shield (B).

Clean entire engine compartment area, especially under engine and over condenser.

Wipe up oil and grease.

OUZXMAG,00007A6 -19-07SEP00-9/17

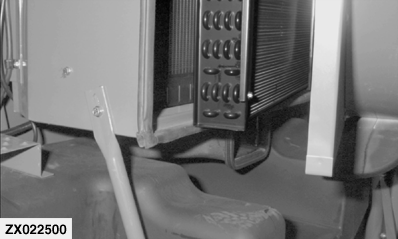

Clean radiator, oil cooler, condenser, and rotary screen from inside out. Clean off top of fuel tank.

OUZXMAG,00007A6 -19-07SEP00-10/17

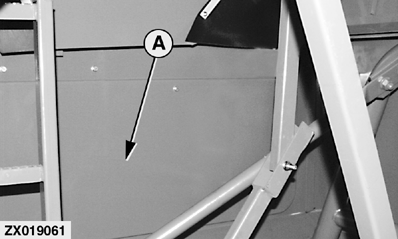

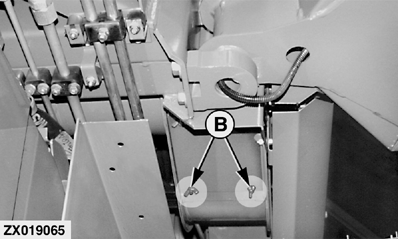

Open lower tailings elevator door (A). Remove wing nuts (B) and remove door at upper end of elevator.

Clean down all sides of elevator and clean out cross auger trough.

OUZXMAG,00007A6 -19-07SEP00-11/17

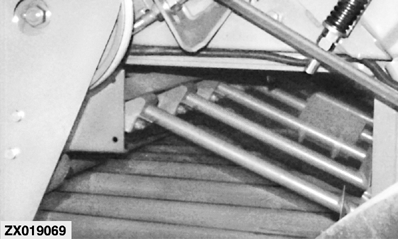

Clean out chaff between cylinder and side sheets. Clean remaining chaff and seed from concave and cylinder. Also clean inside of cylinder. Clean upper tailings auger housing on the inside and the area around it.

OUZXMAG,00007A6 -19-07SEP00-12/17

CAUTION: The feed plate seal, through normal operation, develops a sharp edge. Avoid bodily injury from contact with sharp edge when servicing this area.

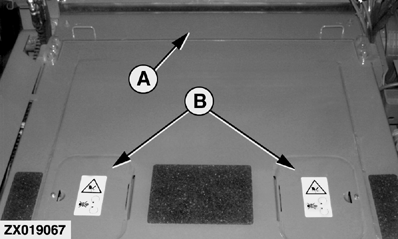

Clean feeder house through top doors (A) and (B). Lift conveyor chain and let snap back several times while cleaning.

OUZXMAG,00007A6 -19-07SEP00-13/17

CAUTION: Stop engine, remove key and lower safety stop before working under feeder house.

Lower stone trap and feed plate. Clean areas out.

OUZXMAG,00007A6 -19-07SEP00-14/17

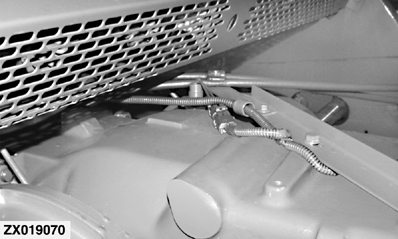

Remove conveyor auger door. Use scraper to loosen material, then clean out through the sides of the combine. Then clean off top of axle and transmission.

OUZXMAG,00007A6 -19-07SEP00-15/17

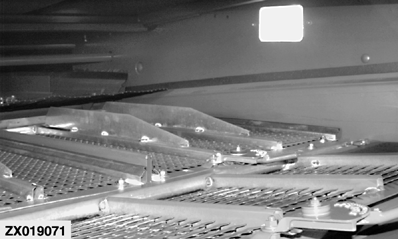

Remove sieve, chaffer and precleaner sections. Clean out chaff from areas where sides meet. Open sieve, chaffer and precleaner as far as possible and clean. Also clean out tailings and clean grain auger troughs.

Clean rear axle area.

OUZXMAG,00007A6 -19-07SEP00-16/17

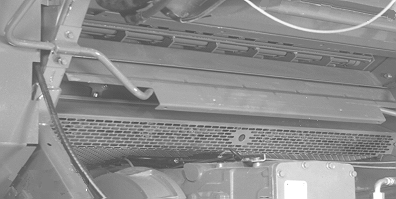

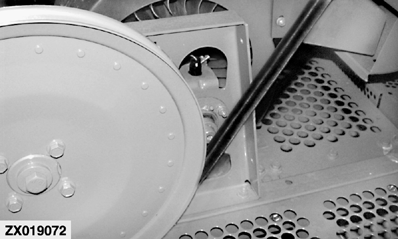

Slide lower shield rearward and clean out cleaning fan area.

After cleaning combine and header, attach header, replace or close all doors.

OUZXMAG,00007A6 -19-07SEP00-17/17
