Unplugging Cylinder With Breaker Bar

CAUTION: Before applying breaker bar, disengage separator, shut off engine and remove key. After clearing cylinder, remove breaker bar before restarting engine and engaging separator.

If cylinder becomes choked, open concave and run separator to clean cylinder.

CAUTION: Raise feeder house, lower safety stop, shut off engine and remove key.

If cylinder remains choked, shut off engine. Leave concave fully opened to remove all straw and other material from front of concave through cylinder (top) front door or bottom cleanout door.

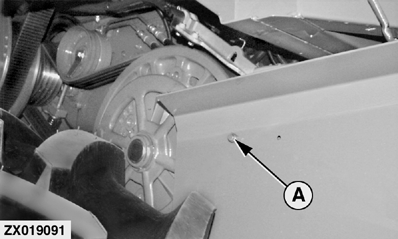

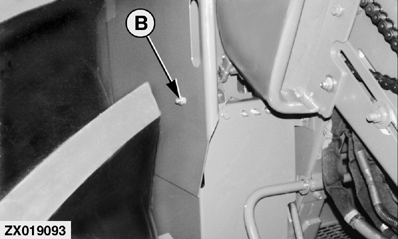

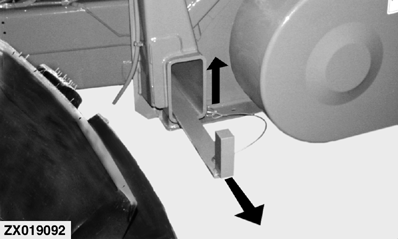

Remove cap screws (A) and (B) and slide shield out.

Insert breaker bar and rock the cylinder back and forth until it is clear.

Slide shield back into position and secure with cap screw.

Adjust concave to original position after cylinder has been cleared.

NOTE: The breaker bar is optionally provided with the combine.
