Rasp Bars

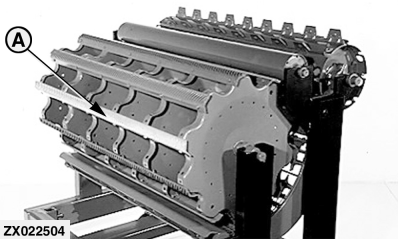

Threshing cylinder can be equipped with two types of rasp bars (A):

1. The chromed and hardened rasp bars are recommended for general use with long lasting and efficient threshing performance.
2. The hardened non-chromed rasp bars are recommended in fragile crops like peas, beans or corn when high quality grain is required.

NOTE: The chromed and hardened rasp bars have twice the life of the non-chromed rasp bars.

The hardened non-chromed rasp bars are provided with serrated edges which wear smooth after 100 hours of operation.

ZX022504

OUZXMAG,00007AC -19-08SEP00-1/1
