Operating Straw Chopper

causym CAUTION: Before switching the straw chopper on or off, always switch off all drives, shut off the engine and wait until all moving parts have come to a stop.

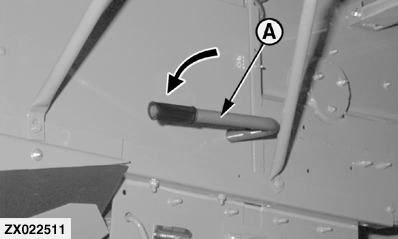

Before switching on, fold deflector sheet (B) in the straw hood to the chopping position by pulling lever (A) downward.

ZX022511
ZX019119

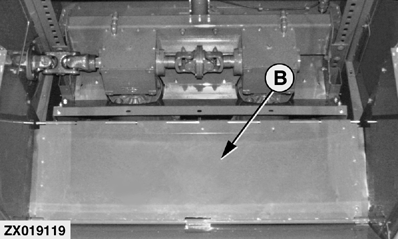

Deflector in Chopping Position

OUZXMAG,00007B2 -19-08SEP00-1/5

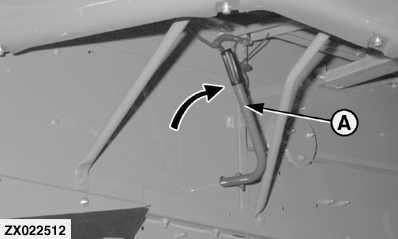

Before switching off, fold deflector sheet (B) to the windrow position by raising lever (A).

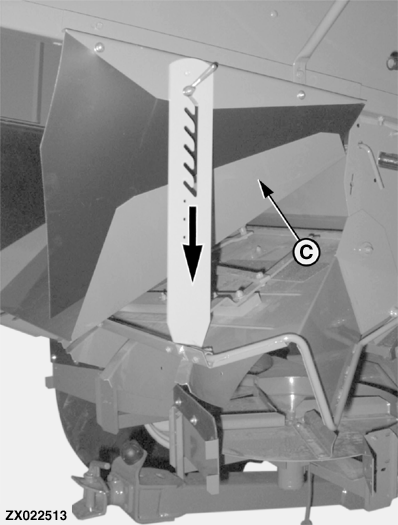

Fully lower tailboard (C), see "Adjusting Tailboard Position" in this Section.

ZX022512
ZX022513
ZX019121

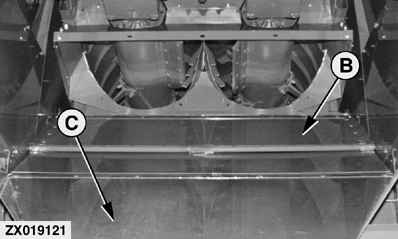

Deflector in Windrow Position

OUZXMAG,00007B2 -19-08SEP00-2/5

Remove Cover

causym CAUTION: Before switching the straw chopper on or off, always switch off all drives, shut off the engine and wait until all moving parts have come to a stop.

Loosen three screws (A) and rotate cover to remove.

ZX019122

OUZXMAG,00007B2 -19-08SEP00-3/5

Engage/Disengage Dog Clutch

To switch on straw chopper, push flange (A) and engage dog clutch (B).

ZX019123

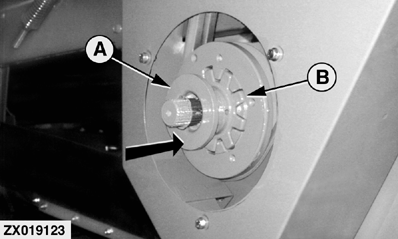

Dog Clutch Engaged

OUZXMAG,00007B2 -19-08SEP00-4/5

To switch off straw chopper, pull flange (A) and disengage dog clutch (B).

Install clutch cover.

ZX019124

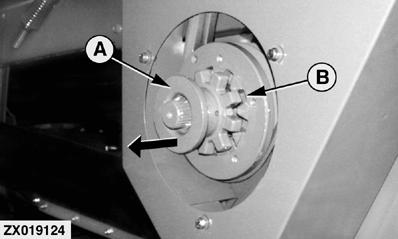

Dog Clutch Disengaged

OUZXMAG,00007B2 -19-08SEP00-5/5
