Adjusting Grain Tank Full Indicator

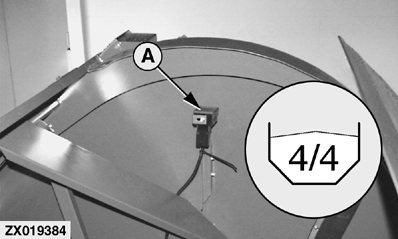

The full tank sensor (A) is located inside front left of grain tank. It turns on a blue light on warning display panel and a buzzer until the sensor is de-activated.

The blue light turns on immediately but there is a two seconds delay between the tripping of the sensor (A) and the buzzer sounding.

CAUTION: Shut off engine and remove key.

NOTE: Header drive must be on for the buzzer to sound.

Adjust sensor (A) by moving it up or down in slot. This adjusts the switch "trip" point.

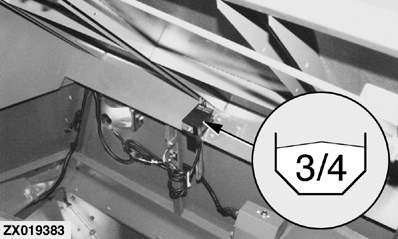

IMPORTANT: When the bracket is reversed, the bracket will then be higher than the grain tank extension.

NOTE: The higher the sensor, the fuller the grain tank will be at the time the buzzer sounds. If higher grain tank fill is desired, the mounting bracket can be reversed.

OUZXMAG,00007B3 -19-08SEP00-1/1
