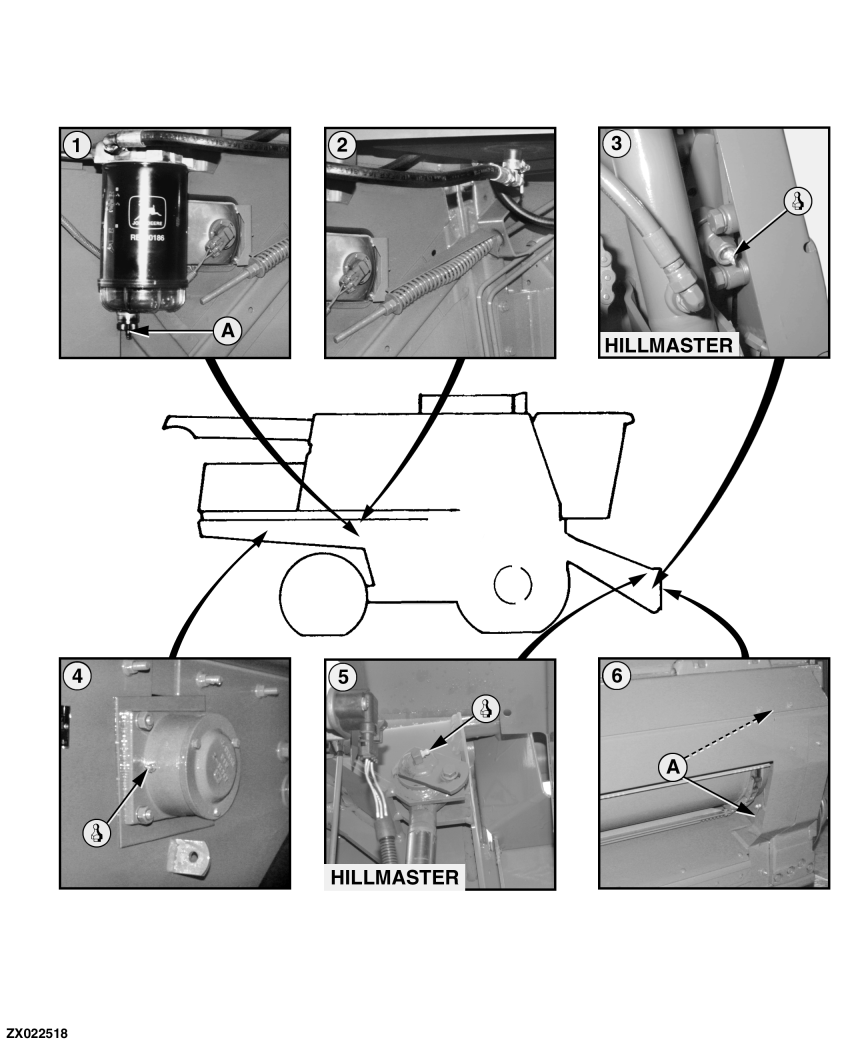

1. Fuel System Water Separator - Check for water. Loosen plug (A) and drain.

2. Check cleaning shoe drive belt tension.

3. Hillmaster Pivoting Front Plate Roller - Two shots of grease (both sides).

4. Straw Chopper Rotor - Two shots of grease (both sides).

5. Hillmaster Pivoting Front Plate Slave Cylinder Rod - Two shots of grease.

6. Check areas (A) for packed material which could prevent header from tilting completely to either side (both sides). Clean out if required.
