50 Hours or Weekly (Continued) - Hillmaster Only

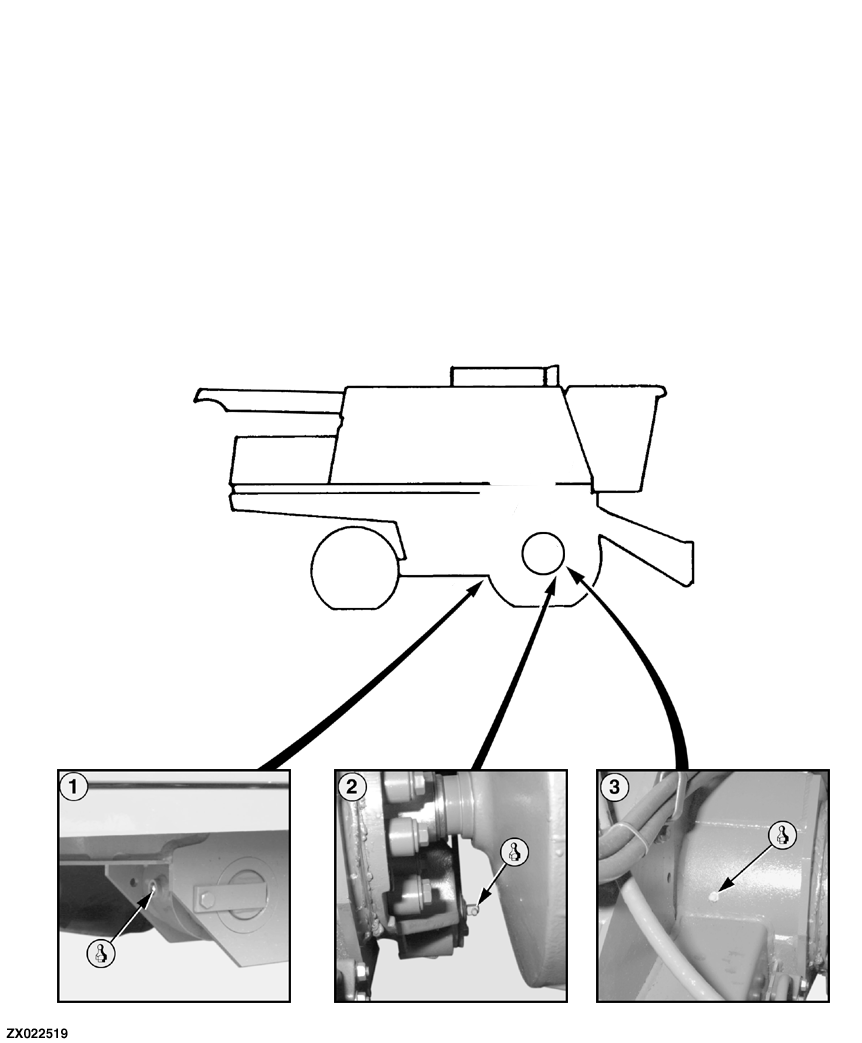

ZX022519

OUZXMAG,00007B9 -19-08SEP00-1/2


1. Leveling Cylinder Barrel - Until grease comes out (both sides).

2. Master Cylinder Piston Rod - Until grease comes out.

3. Final Drive Pivot - Until grease comes out (both sides).

OUZXMAG,00007B9 -19-08SEP00-2/2
