Right-Hand and Left-Hand Side Panels

causym CAUTION: Engine must be off and key removed.

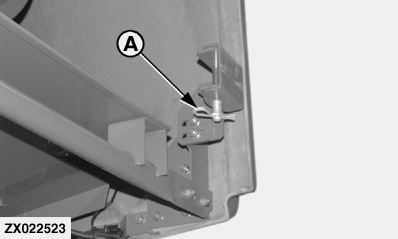

Unlatch pin (A) from side panel.

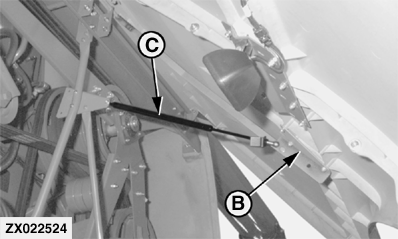

Turn latch bolt head using wrench or screwdriver, then pull out on panel (B) to raise it.

IMPORTANT: Do not use the cylinder (C) as a hand hold or hang anything on these cylinders. This could cause the cylinder rod to deflect and cause damage to the cylinder.

ZX022523
ZX022524

OUZXMAG,00007BC -19-08SEP00-1/1
