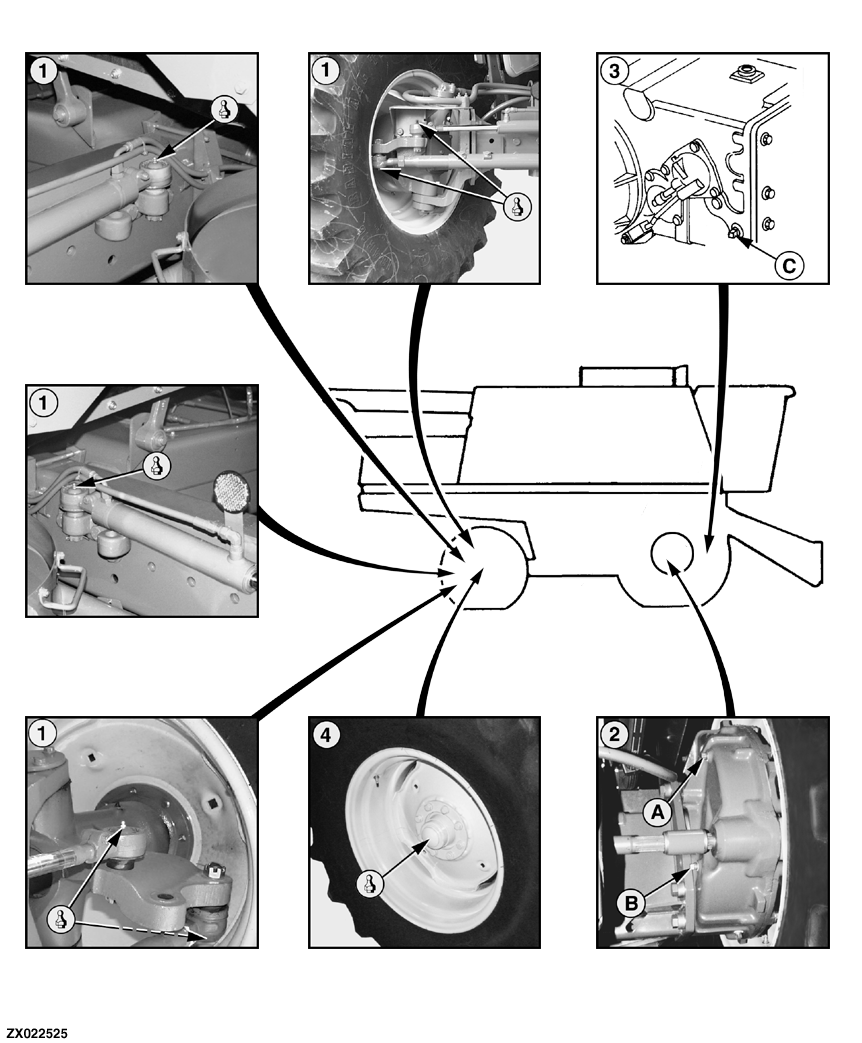

1. Rear Axle (Both Sides)-Power steering outer fitting.

Rear Axle (Both Sides)-Power steering inner fitting.

Rear Axle (Both Sides)-Tie rod fitting.

2. Final Drive Oil-Fill at hole (A).

Check oil level up to within 6 mm (0.23 in.) of bottom of hole at plug (B).

IMPORTANT: On Hillmaster machines, the leveling cylinders must be centered (half extended) before the oil level is checked.

3. Transmission-Remove plug and check. Add as needed to within 12 mm (0.47 in.) of bottom of hole (C).

IMPORTANT: On Hillmaster machines, the leveling cylinders must be centered (half extended) before the oil level is checked.

4. Rear Wheel Hubs (Both Sides) (Standard Axle)-When operating in mud and water, grease at ten hours.
