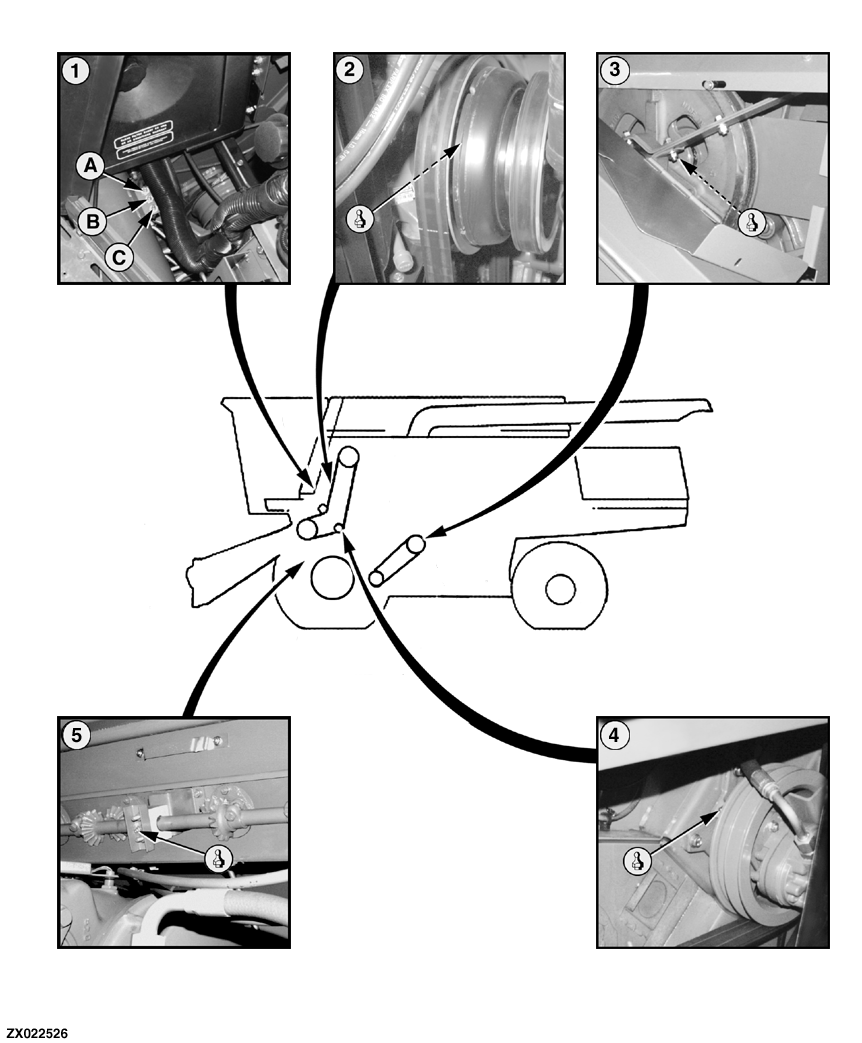

1. Left-Hand Lube Bank - Grease three fittings: A-Cylinder Shaft Bearing B-Overshot Beater C-Stripper Beater

2. Primary Countershaft Gearcase (grease nipple is located between electromagnetic clutch and gearcase).

3. Secondary Countershaft Gearcase.

4. Reel Drive Sheave Bearing.

5. Conveyor Auger Drive Bearings.
