OUZXMAG,00007C0 -19-09SEP00-1/2

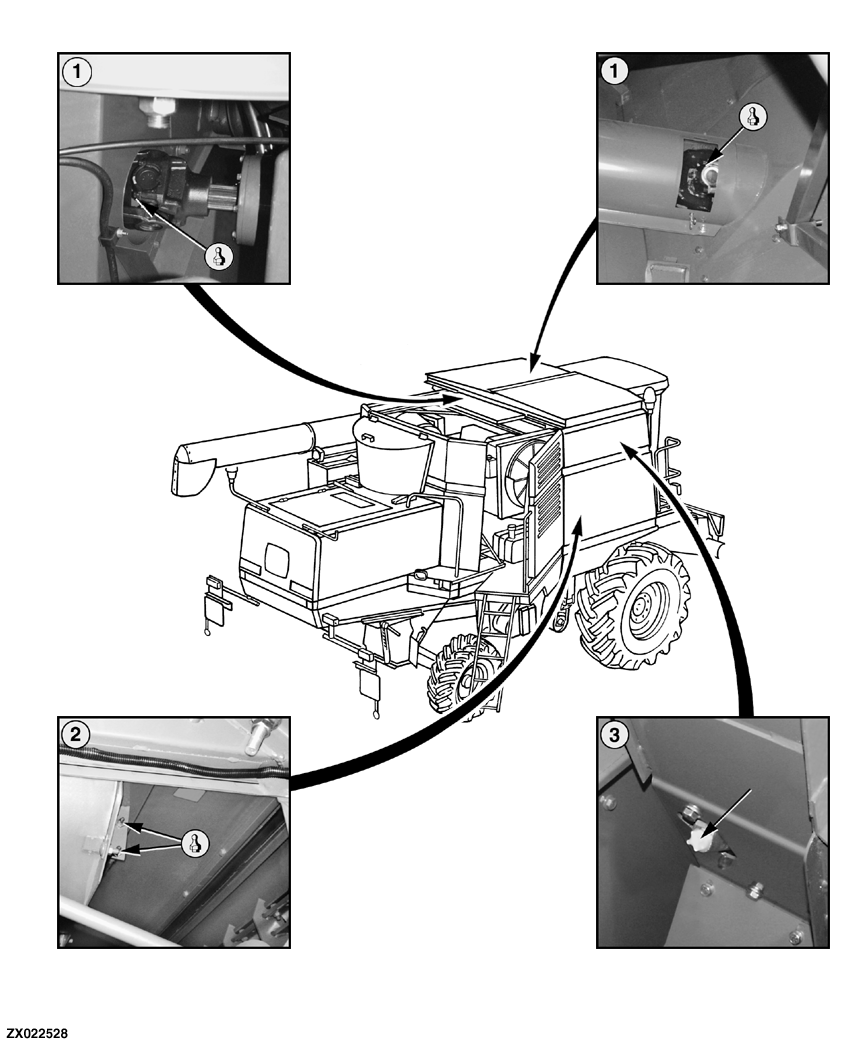

1. Separator Driveshaft U-Joint (Both Ends) (rear grease fitting can be reached from underneath).

2. Front Bearings on the Tine Separator.

3. Loading Auger Gearcase-Check oil level at fill/level plug and add oil as needed.

OUZXMAG,00007C0 -19-09SEP00-2/2
