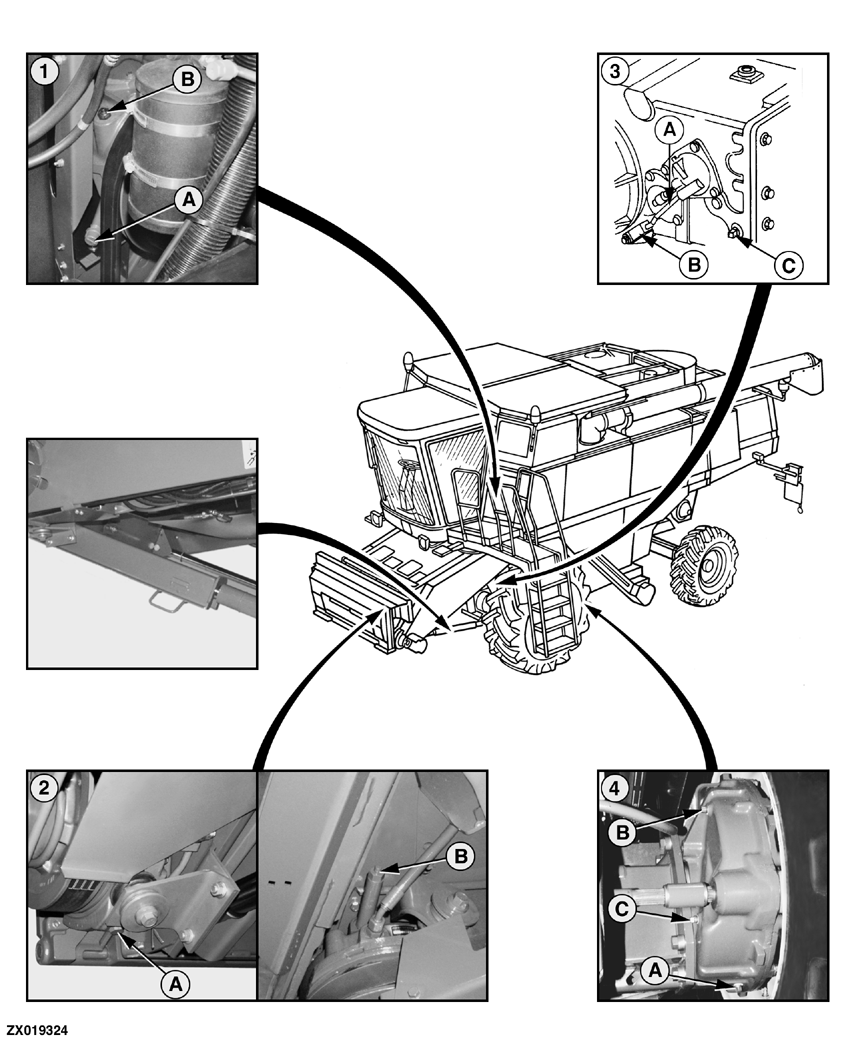

1. Primary Countershaft Gearcase-Drain at plug (A). Refill at plug (B) until sight glass shows oil.

IMPORTANT: On Hillmaster machines, the leveling cylinders must be centered (half extended) before the oil level is checked.

2. Reverser Gear Case-Raise feeder house and lower safety stop. Drain at (A) and refill at (B). Check oil level with feeder house all the way up. Oil level must show on knurled part of dipstick.

3. Transmission-Slide tube (A) out of block (B). Remove block (B) to drain. Fill at hole (C) to within 12 mm (0.47 in.) of bottom of hole.

4. Final Drives-Drain at (A) and refill at (B) to within 6 mm (0.23 in.) of bottom of check hole (C).

IMPORTANT: On Hillmaster machines, the leveling cylinders must be centered (half extended) before the oil level is checked.
